Pump Model: 250 psi pump |
| |||||
Sr. | Part | Qty. | SKU | Photo |
| |

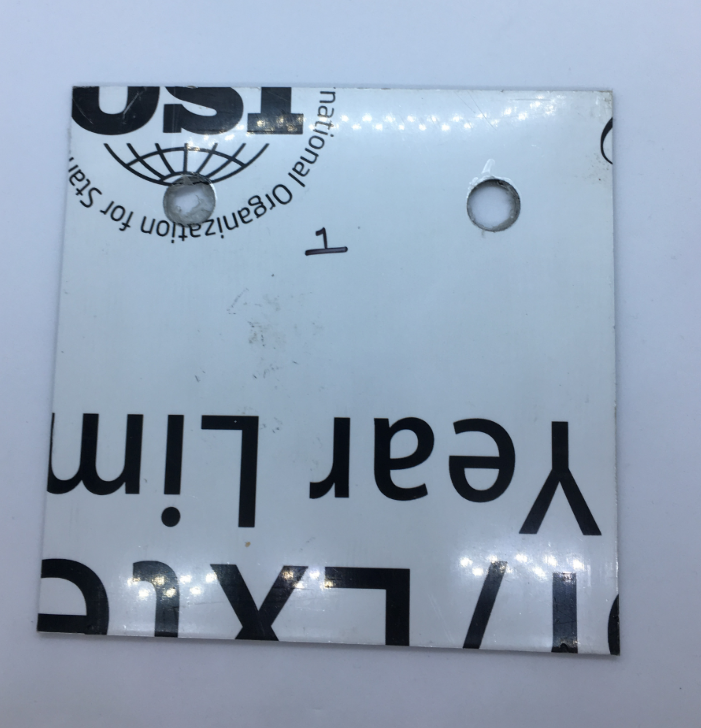

1 | 7.5 x 7.5" Al. panel (casing) | 2 |
|
|
| |
2 | 12 x 7.5” Al. panel with holes | 3 |
|
|
| |
3 | 12 x 7.5” Al. panel without holes (top) | 1 |
|
|
| |
4 | 10.5" aluminum channel | 4 |
|
|
| |

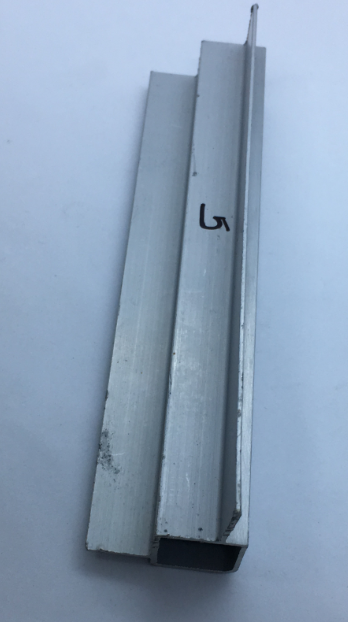

5 | 6.3” aluminum channel | 8 |
|
|
| |
6 | 3-way plastic connectors | 8 |
|
|
| |
7 | Small rubber feet (with washer and nut) | 4 |
|
|
| |
8 | 1/2" casing screws | 54 |
|
|
| |
9 | Toggle switch- L.P. (with cable) | 1 | MC60180 |
|
| |

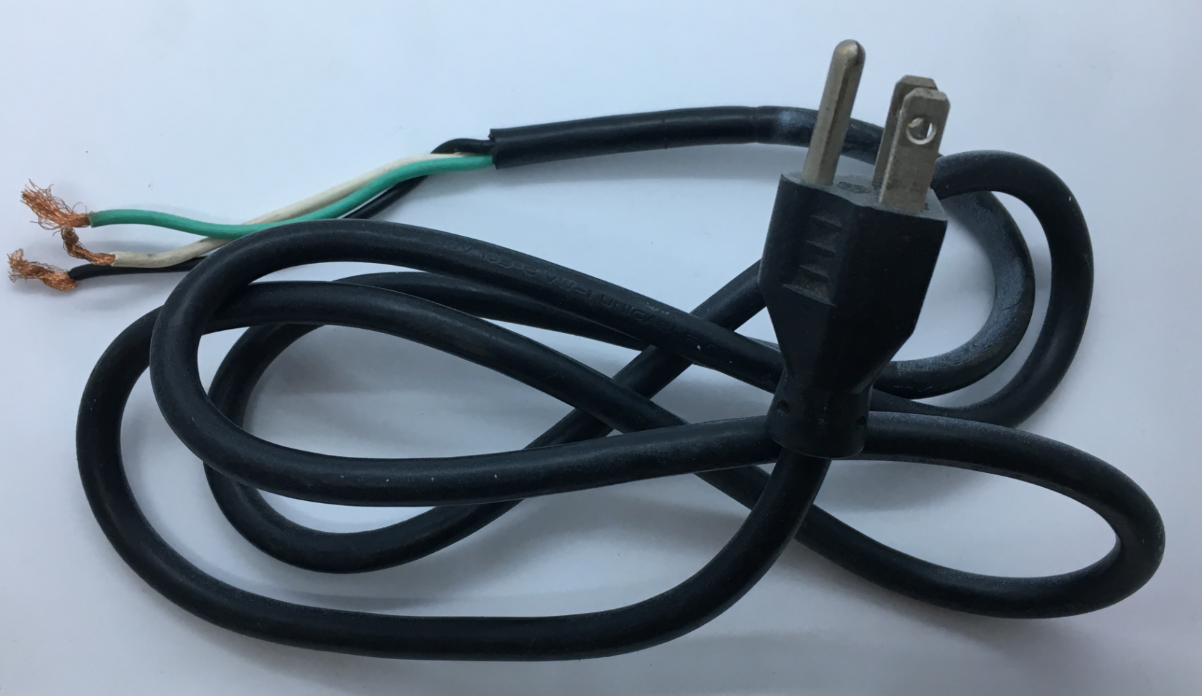

10 | Power cord (6') | 1 |
|
|
| |
11 | Plastic bulkhead (power cable) | 1 |
|
|
| |

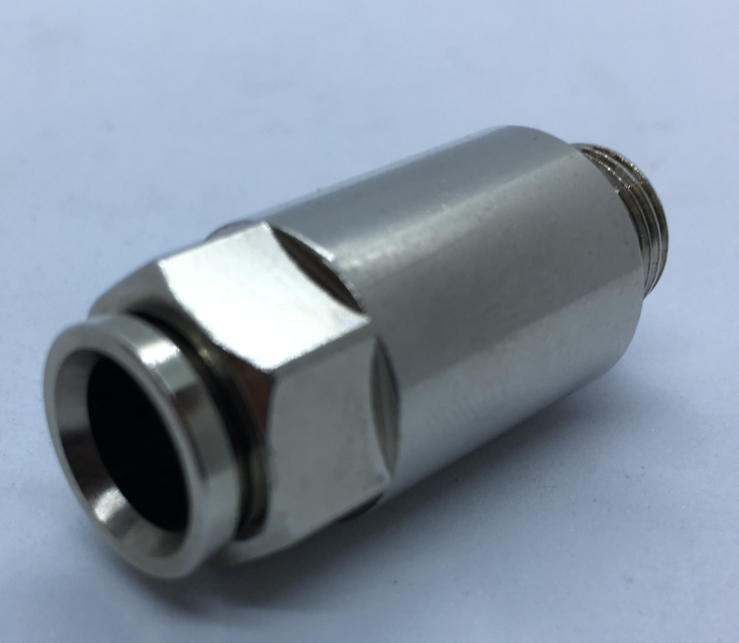

12 | Bulkhead for Misting Pump | 2 | MC60340 |
|
| |
13 | 3/8"- inlet fitting | 1 |
|
|
| |
14 | 1/4"- outlet fitting | 1 |
|
|
| |

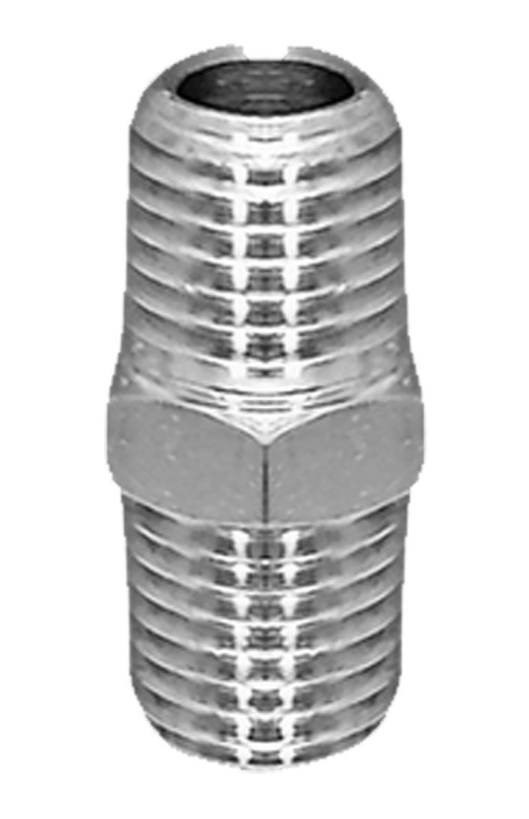

15 | Hex nipple 1/4" x 1/8" | 1 | MC59060 |
|
| |

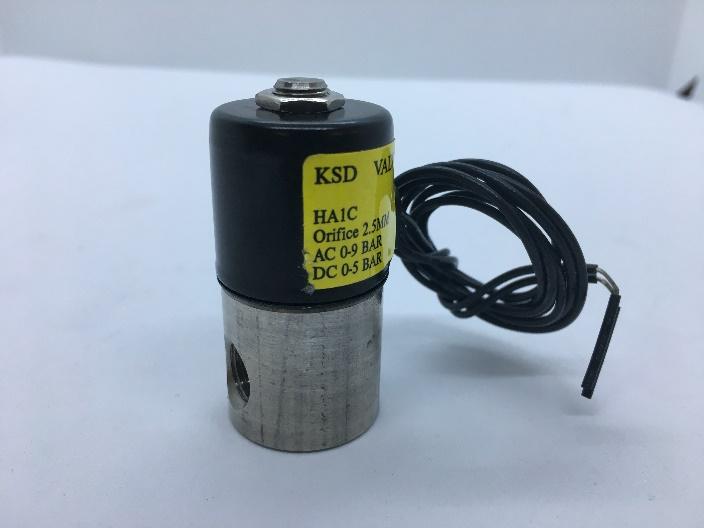

16 | Solenoid- L.P. | 1 |
|
|
| |

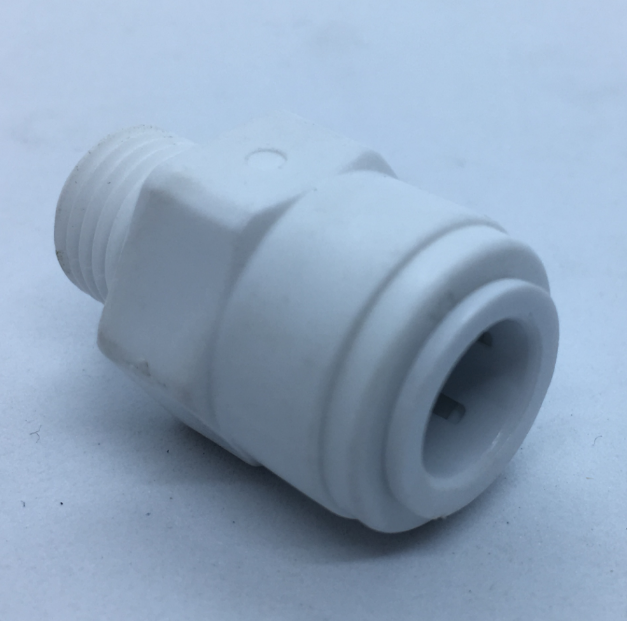

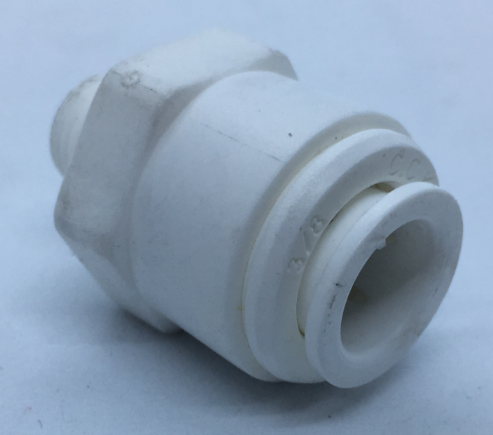

17 | Polypropylene 3/8 Tube OD x 1/8 Inch MNPTF | 1 |
|
|
| |
18 | Polypropylene 3/8 Tube OD x 1/4 Inch MNPTF | 1 | MC54120 |
|
| |

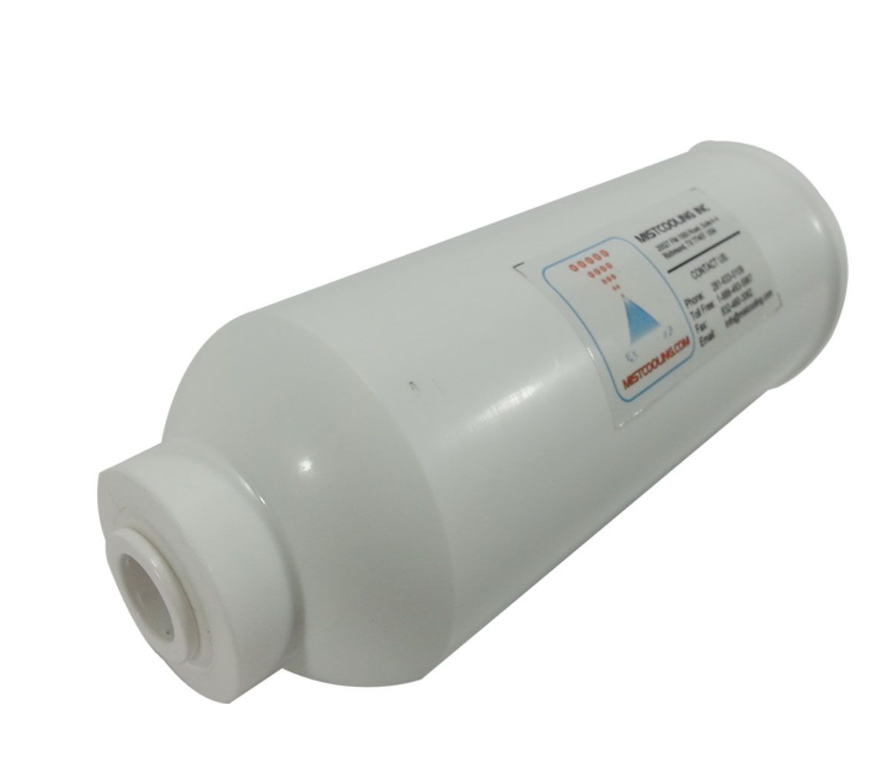

19 | In-line filter- 3/8" | 1 | MC65042 |
|
| |

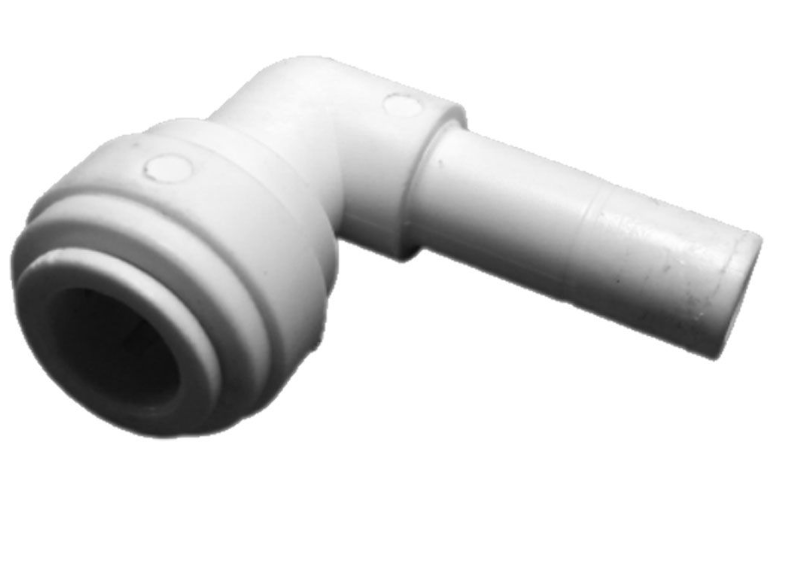

20 | Polypropylene Stem Elbow Connector 3/8 Stem x 3/8 | 3 | MC54040 |
|
| |
21 | 250 psi pump-motor | 1 |
|
|
| |

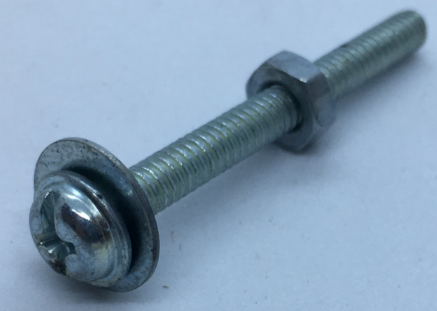

22 | 5/32" x 2" bolt, nut, washer | 4 |
|
|
| |

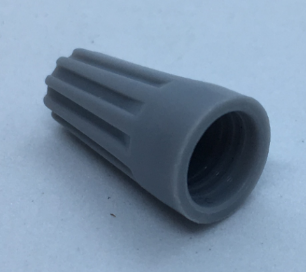

23 | Grey Wire cap | 4 |
|
|
| |

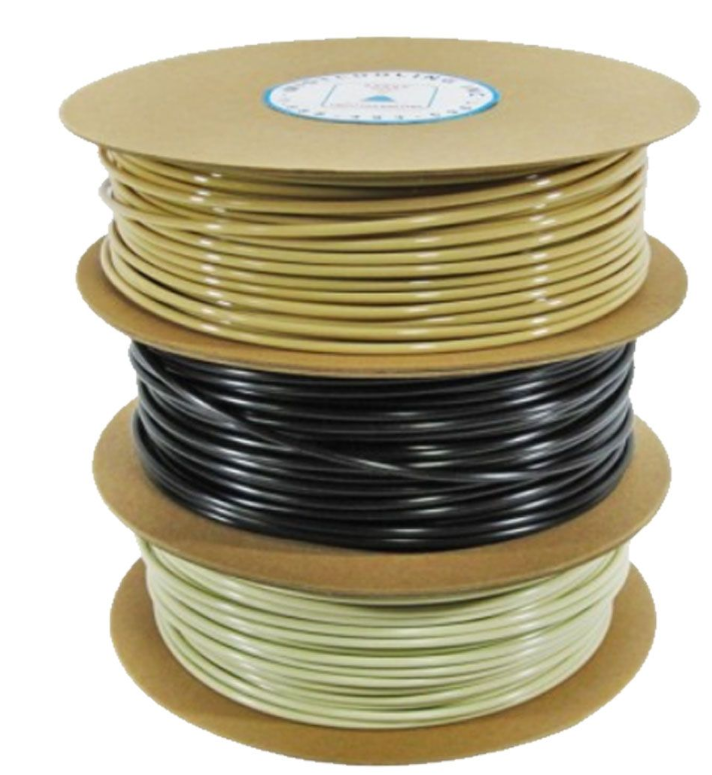

24 | 3/8" L.P. tubing- small size | 2 |
|
|
| |
25 | 3/8" | 1 |
|
|
| |

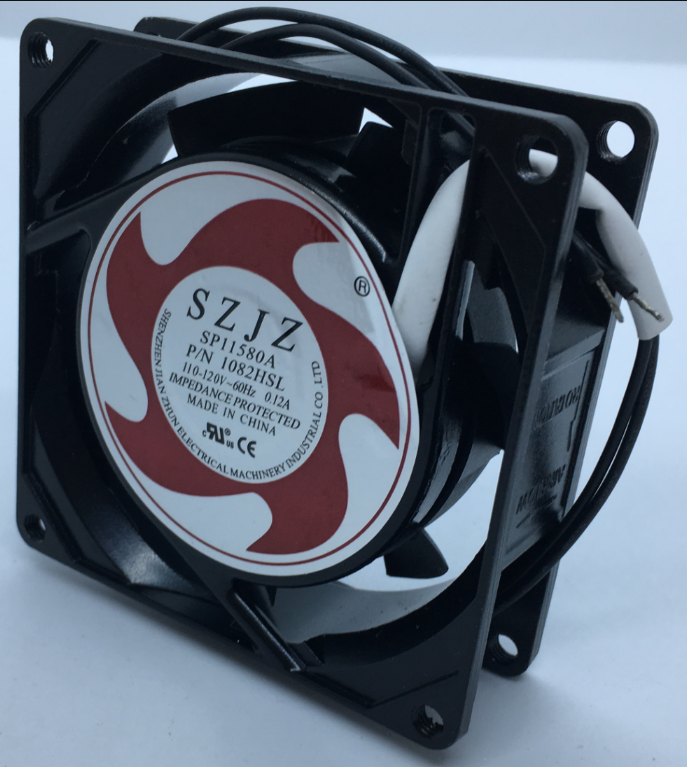

26 | cooling fan (optional) | 1 |
|
|
| |
