| Pump Model: 1000 psi pump |
| ||||||||
| Sr. | Part | Qty. | SKU | Photo |
| ||||

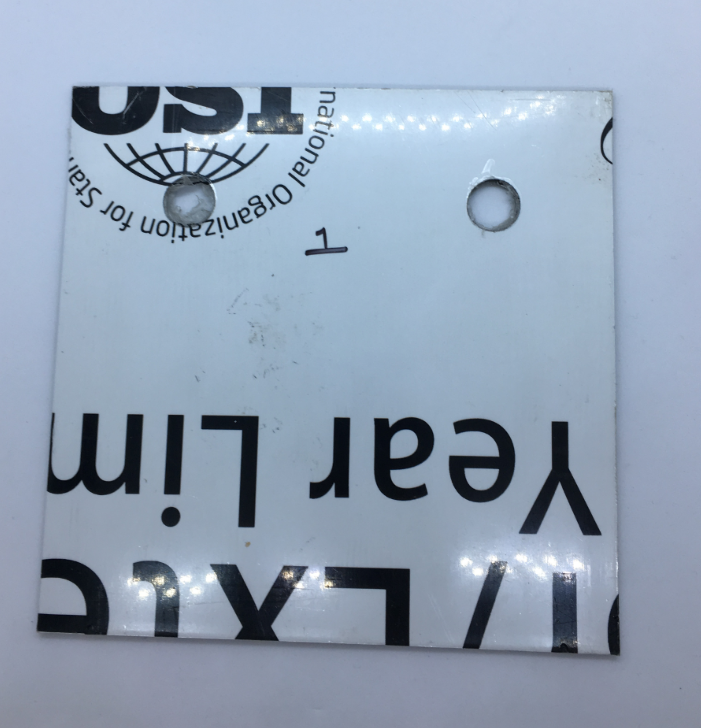

| 1 | 7.5 x 7.5" Al. plate (casing) | 2 |
|
|
| ||||
| 2 | 12 x 7.5” Al. plate with holes | 3 |
|
|
| ||||
| 3 | 12 x 7.5” Al. plate without holes (top) | 1 |
|
|
| ||||
| 4 | 10.5" aluminum channel | 4 |
|
|
| ||||

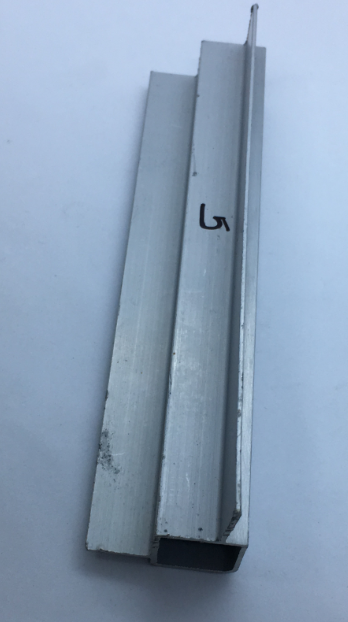

5 | 6.3” aluminum channel | 8 |
| |||||||
6 | 3-way plastic connectors | 8 |
| |||||||

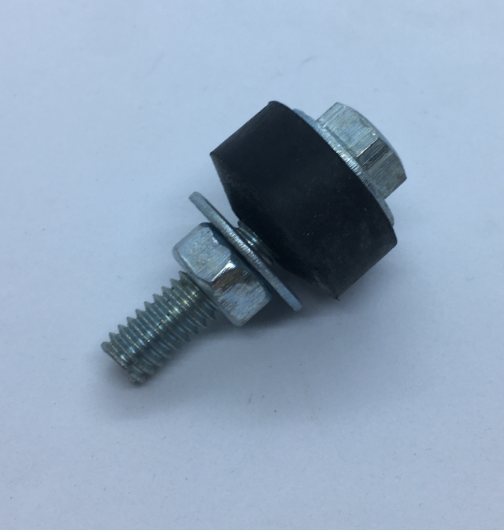

7 | Small rubber feet (with washer and nut) | 4 |
| |||||||
8 | 1/2" casing screws | 54 |
| |||||||

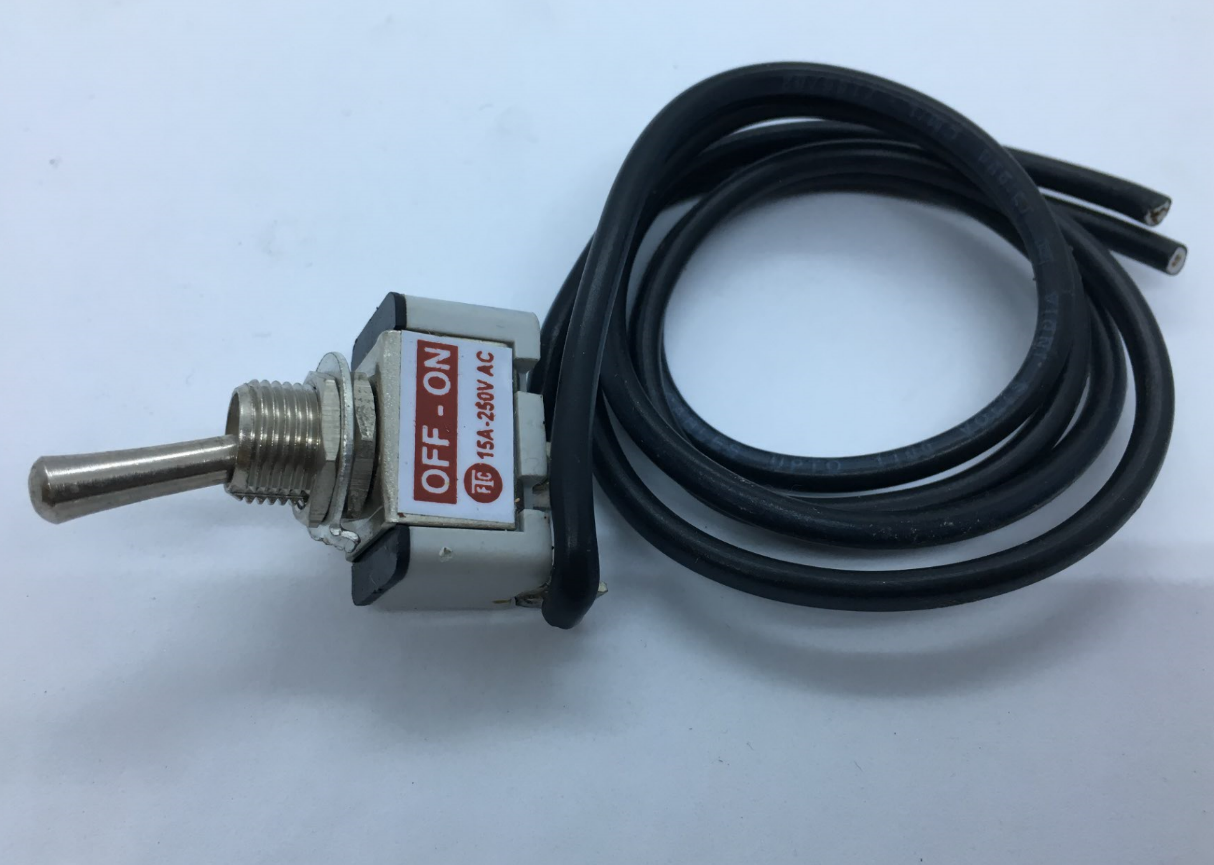

9 | Toggle switch- L.P. (with cable) | 1 | MC60180 |
| ||||||
10 | Power cord (6') | 1 |
| |||||||

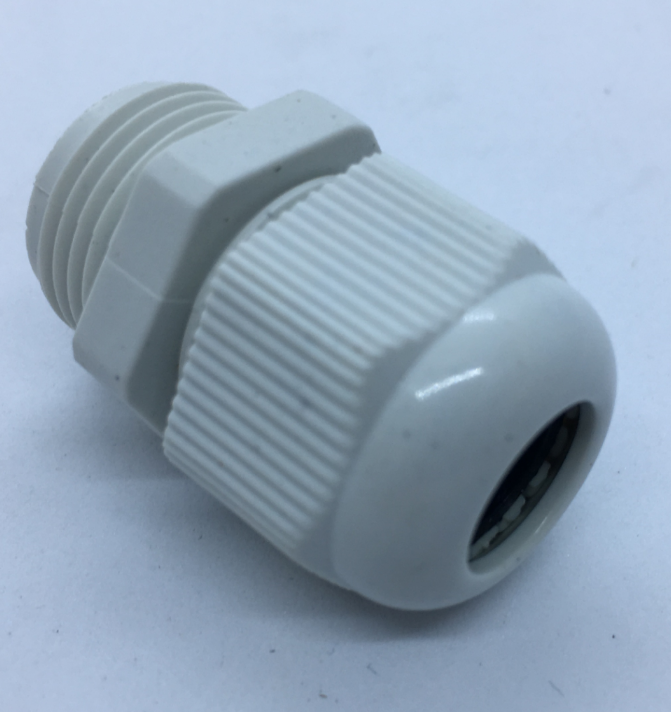

| 11 | Plastic bulkhead (power cable) | 1 |
|
|
| ||||

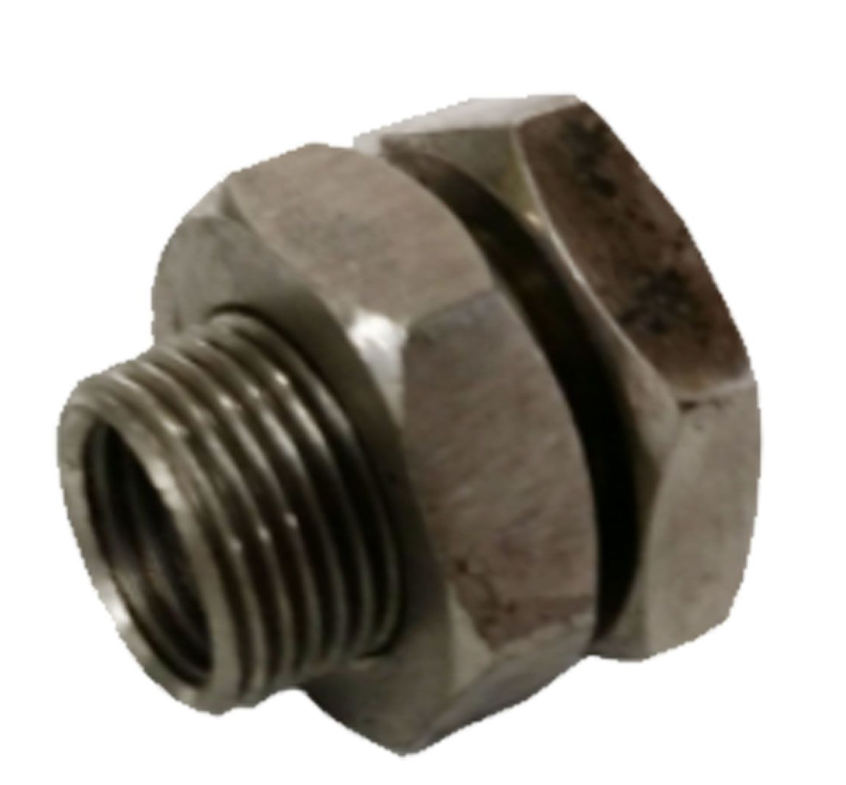

| 12 | Bulkhead for Misting Pump | 2 |
|
|
| ||||
| 13 | 1/4"- inlet / outlet fitting | 2 | MC57100 |
|
| ||||
| 14 | 1000psi Pump- motor | 1 |
|
|
| ||||

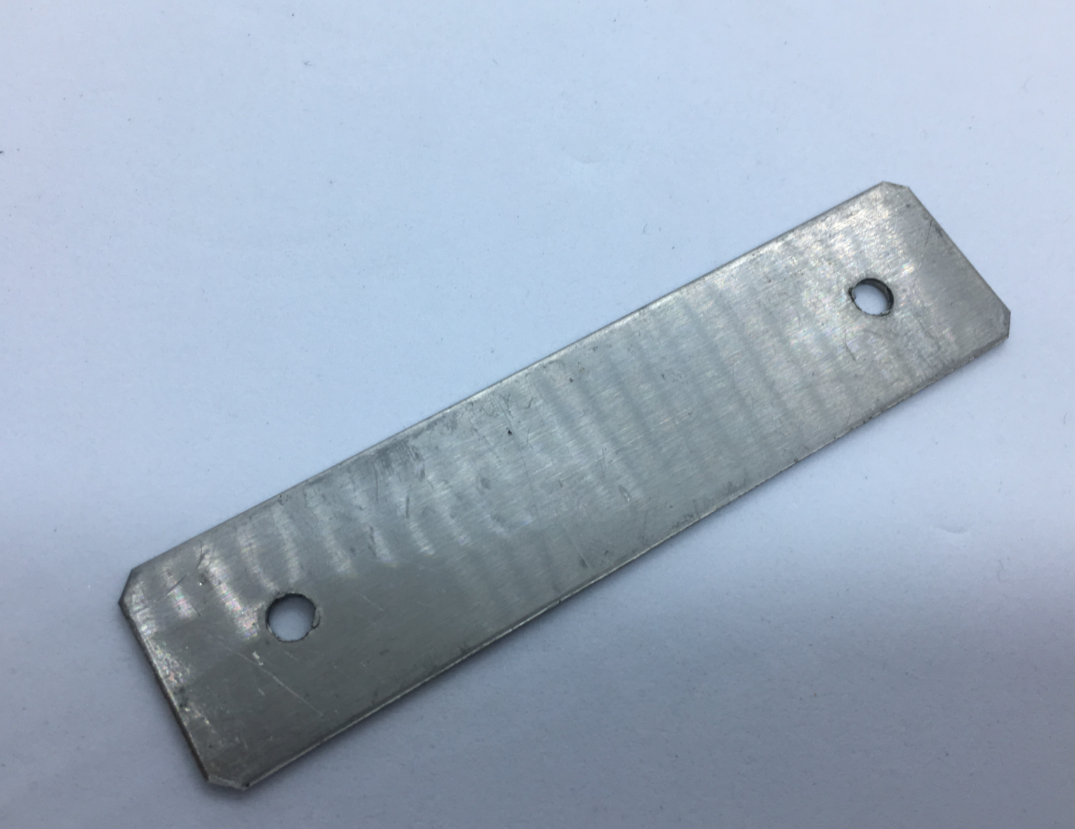

| 15 | Filter bracket | 1 |
|
|
| ||||

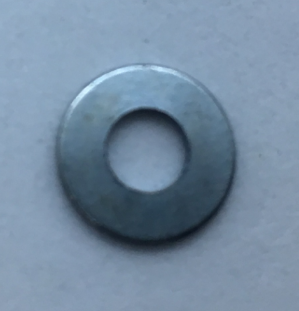

| 16 | washer (a filter bracket) | 4 |
|
|
| ||||
| 17 | Small rubber feet (with washer and nut) | 4 |
|
|
| ||||
| 18 | 1/4" push lock- 1/4" thread | 2 | MC52440 |
|
| ||||

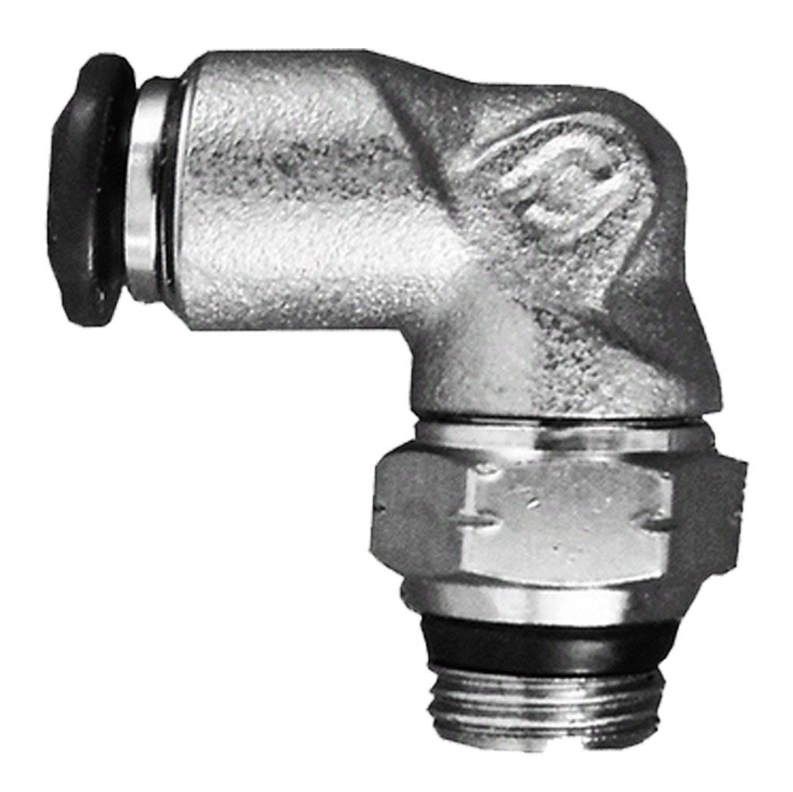

| 19 | 1/4" push elbow- 1/4" thread | 4 | MC52400 |
|
| ||||

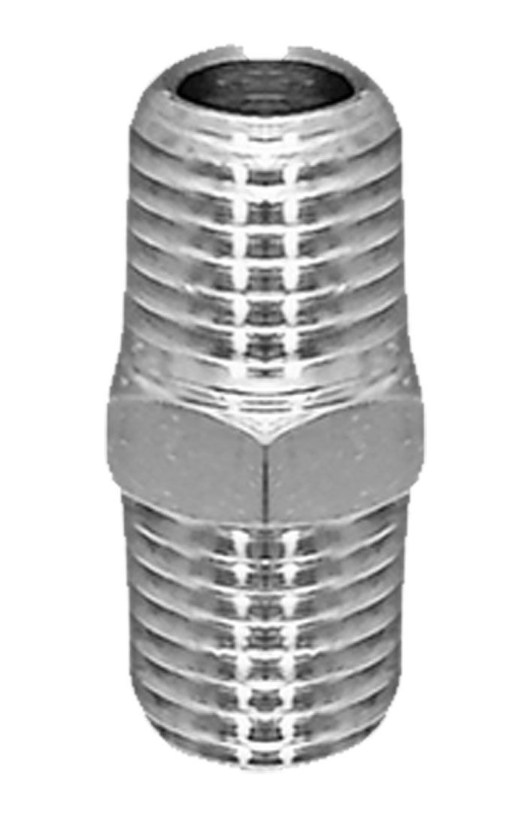

| 20 | 1/4 x 1/4" hex nipple | 1 | MC60020 |
|
| ||||

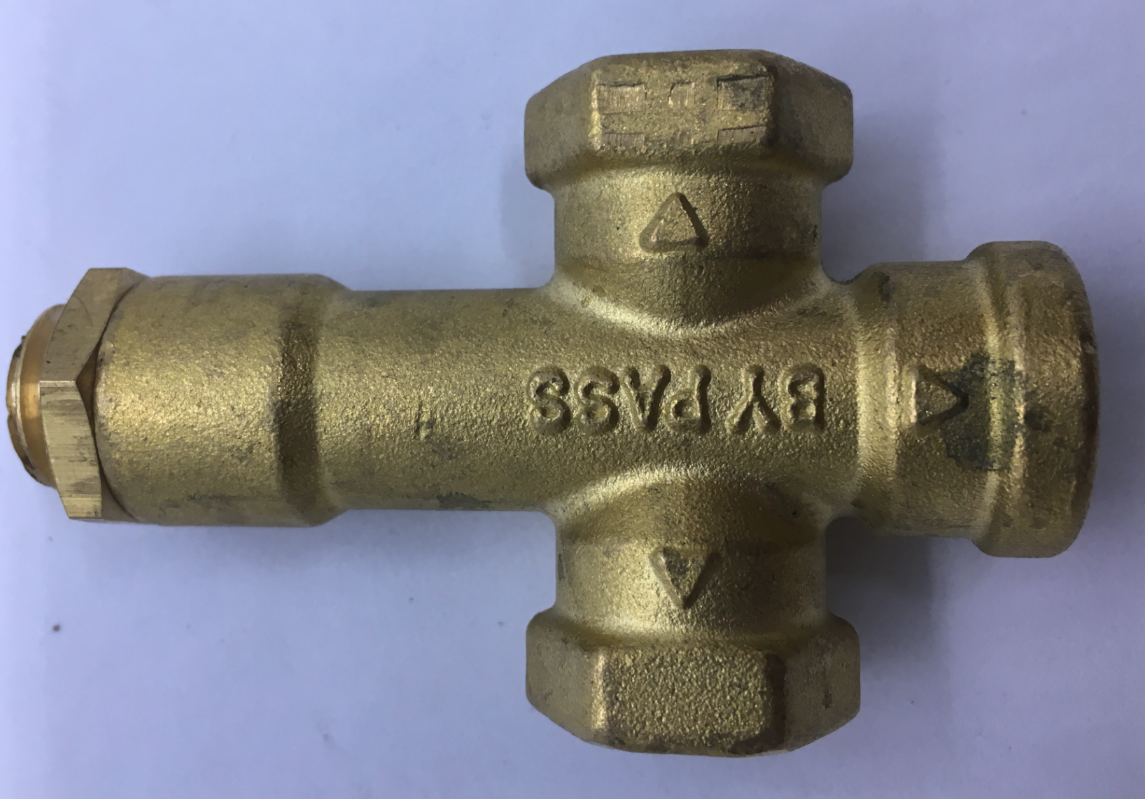

| 21 | 1/4" brass PRV | 1 |
|
|
| ||||

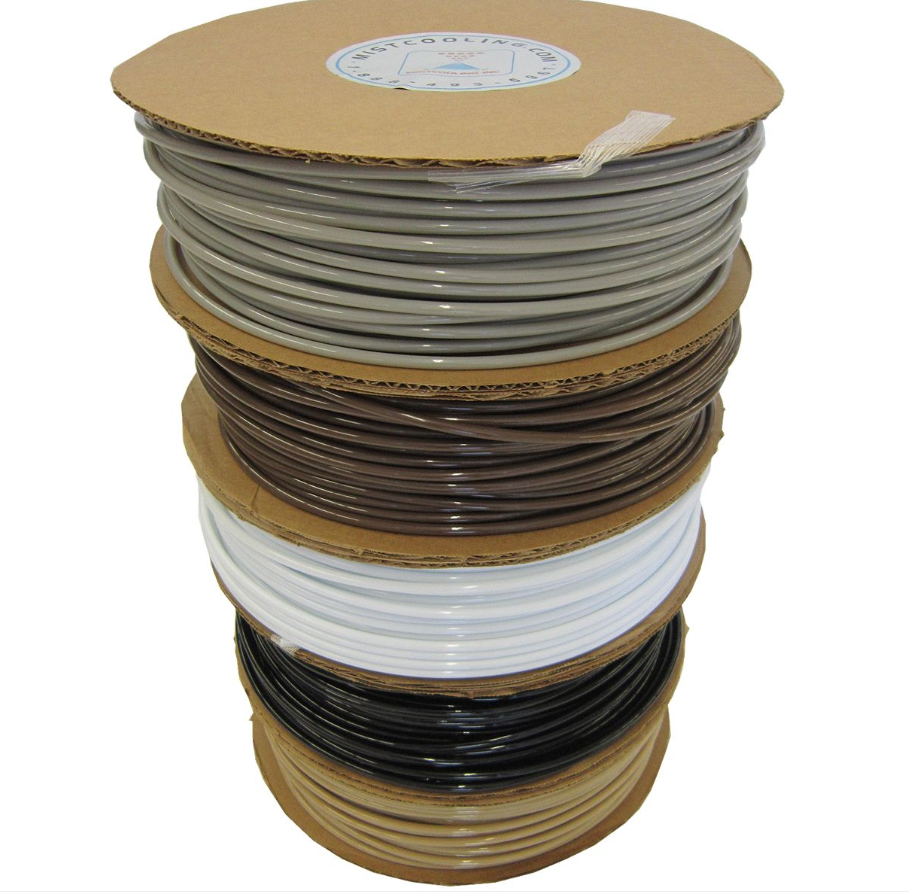

| 22 | H.P. tubing- 1/4" | 3 |
|
|
| ||||

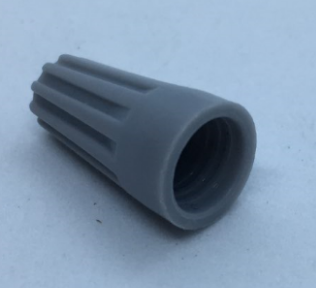

| 23 | Wire caps | 4 |
|
|
| ||||
| 24 | Mount bolt, nut and washer | 4 |
|
|
| ||||
