1500 PSI Components 0.5 1_2

Pump Model:  1500 psi pump (0.5,1 & 2)

Sr.

Part

Qty.

SKU


1

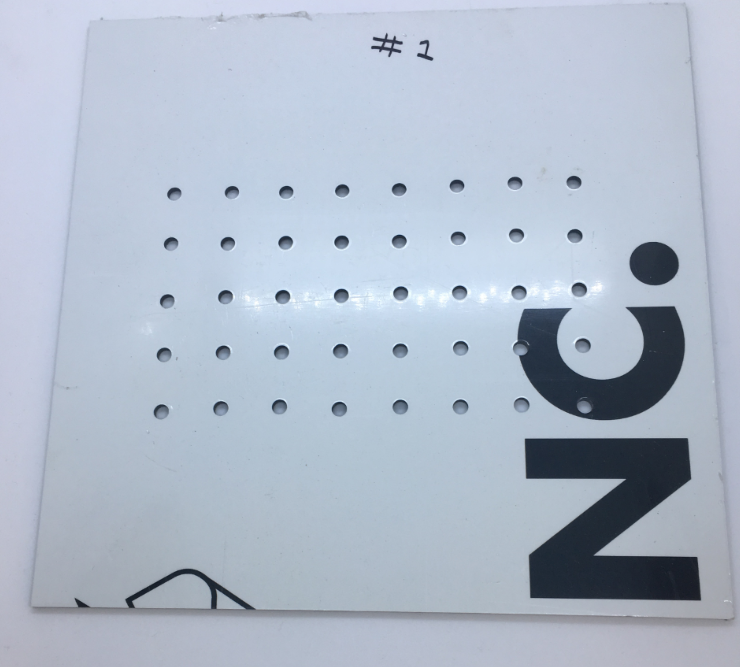

10.5 x 10.5" panel

2

2

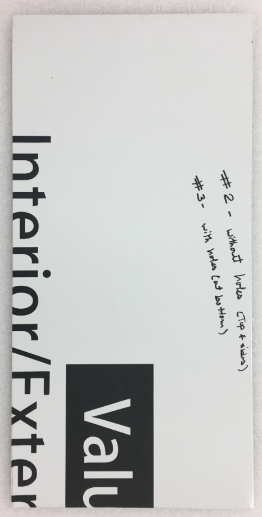

22 x 10.7" panel (no holes)

3

3

22 x 10.7" panel (with holes-bottom side)

1

4

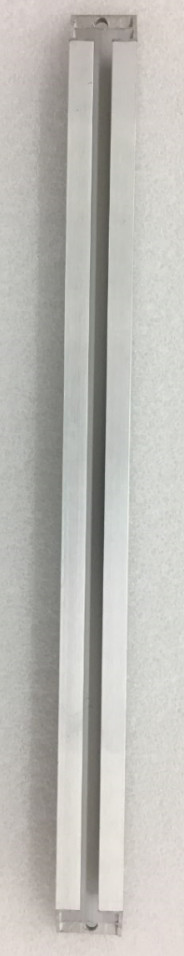

9.5" al. channel

8

5

21" al. channel

4

6

Filter bracket

1

7

plastic connectors for channels

8

8

Washers (at filter)

4

9

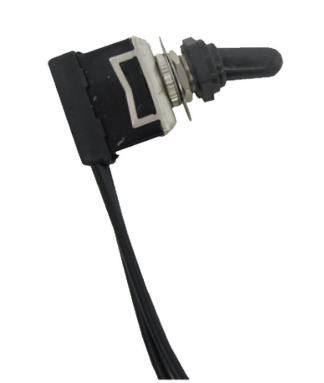

big Toggle switch- with wire

1

MC60440

10

power cord-10'

1

11

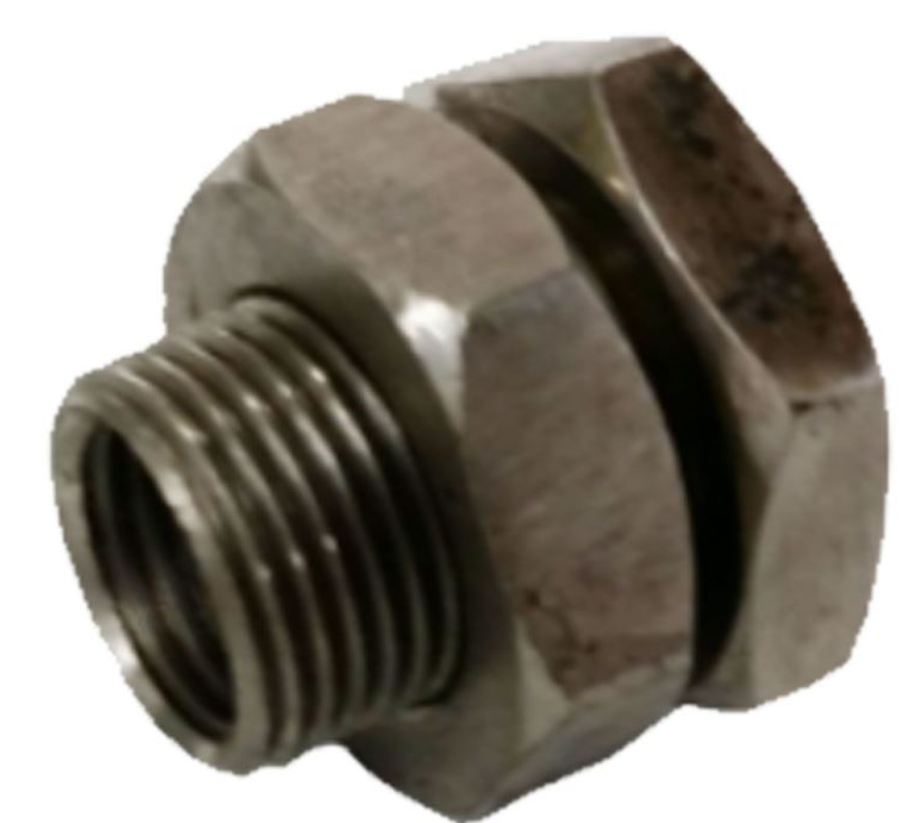

Metal bulk head

1

MC604340

12

1/2" casing screws

56

13

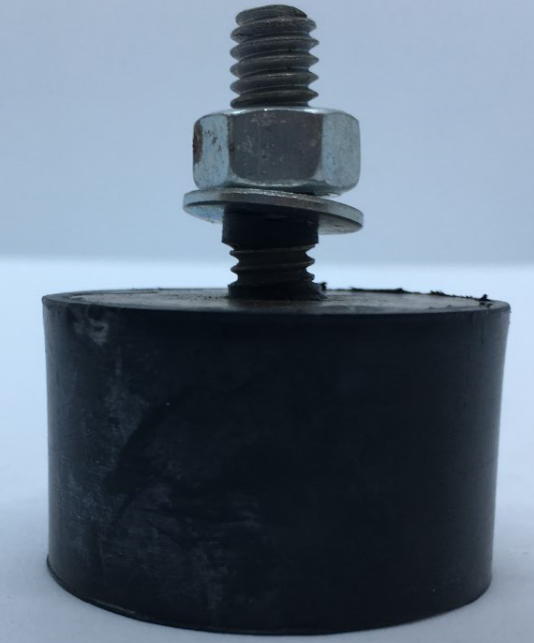

big rubber feet

4

14

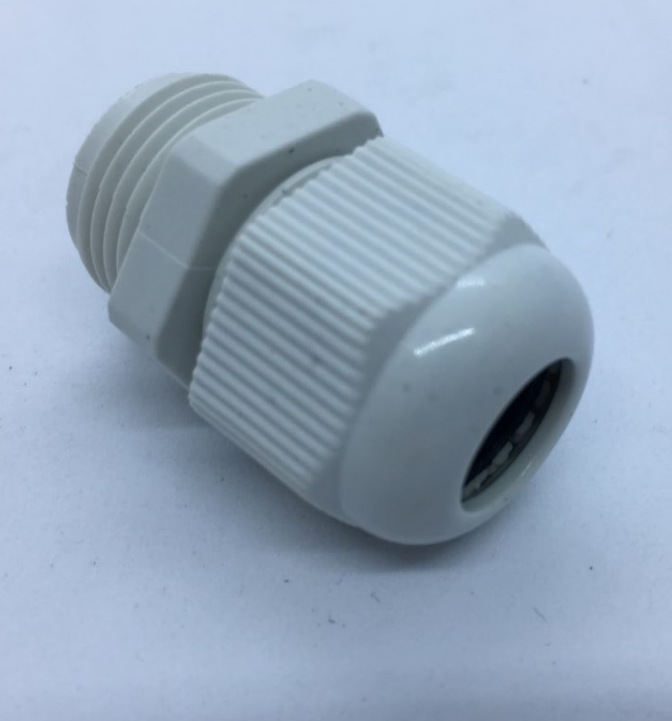

Plastic bulkhead

3

15

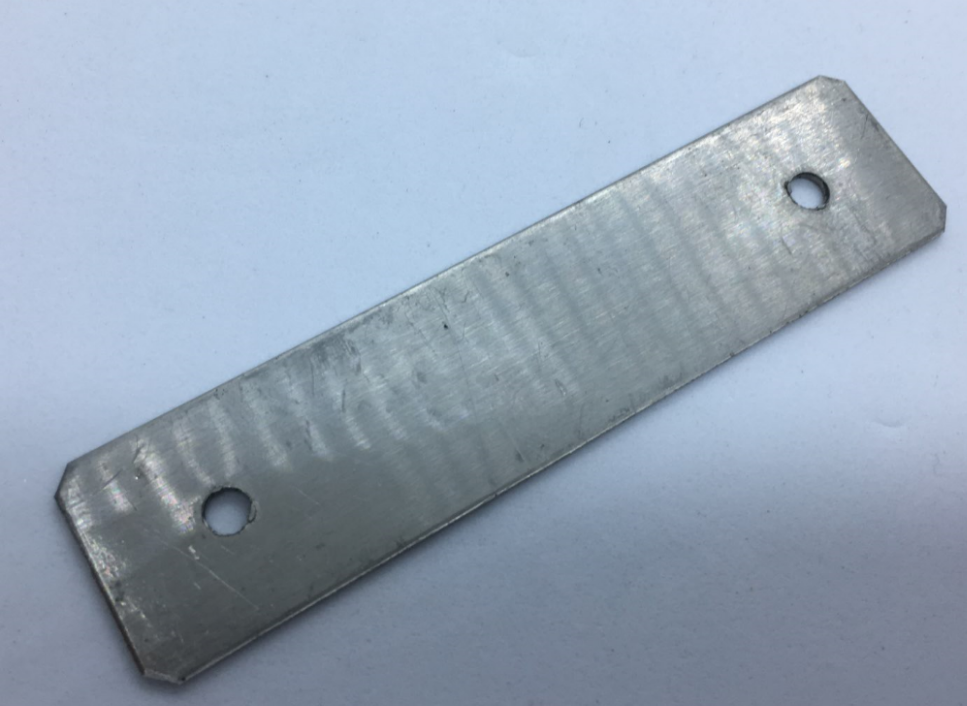

Mounting Rails

2

16

Rail mounting screws

4

17

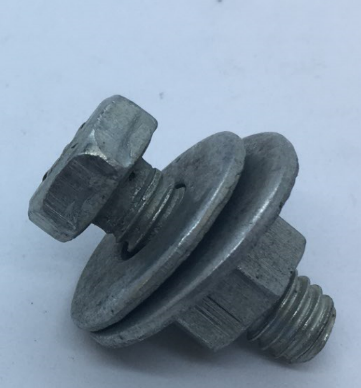

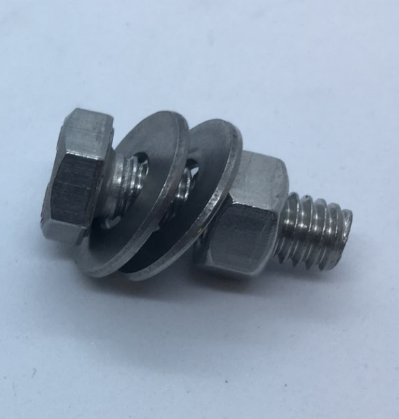

Nut, bolt and washers to mount pump

4

18

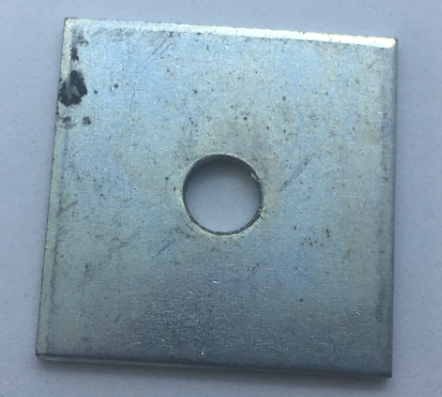

Square washer

4

19

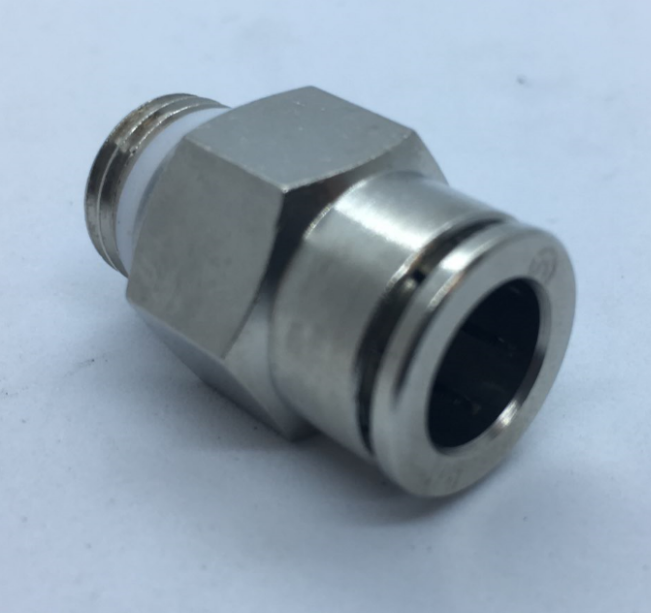

Adapter-1/4'' Male Thread to 3/8'' Push Lock

1

MC52442

20

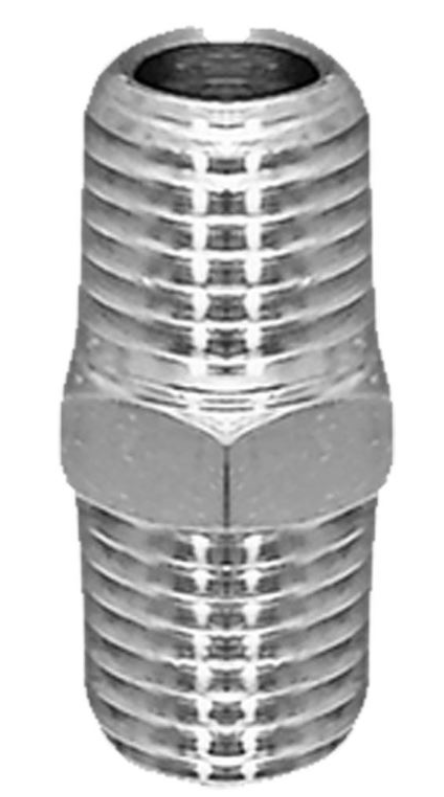

Mistcooling Hex nipple

1

MC60020

21

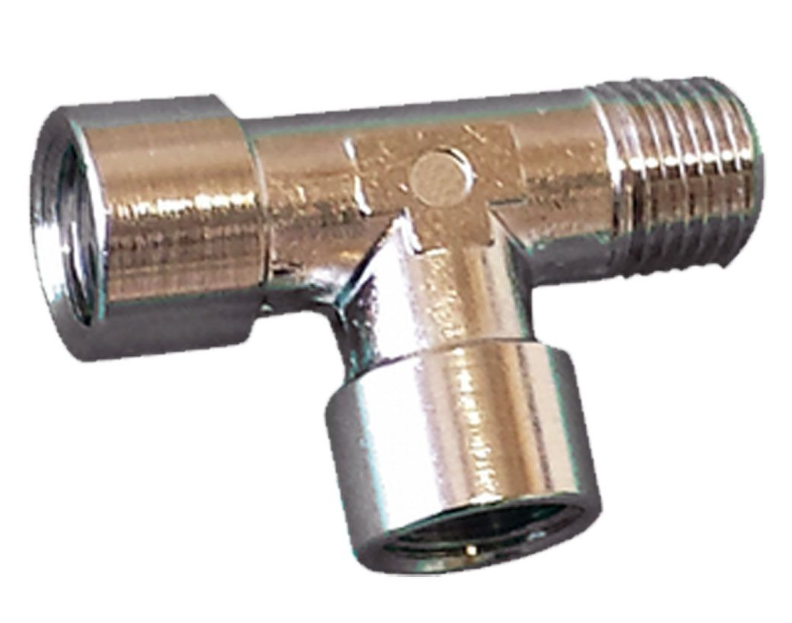

1/4-inch female-female-male misting tee

1

MC53140

22

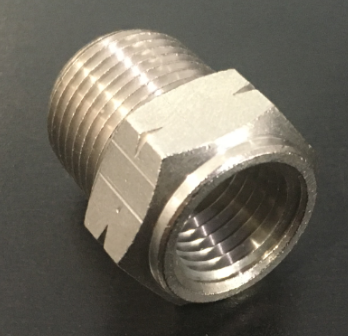

1/8" female x 1/4" male adapter

1

23

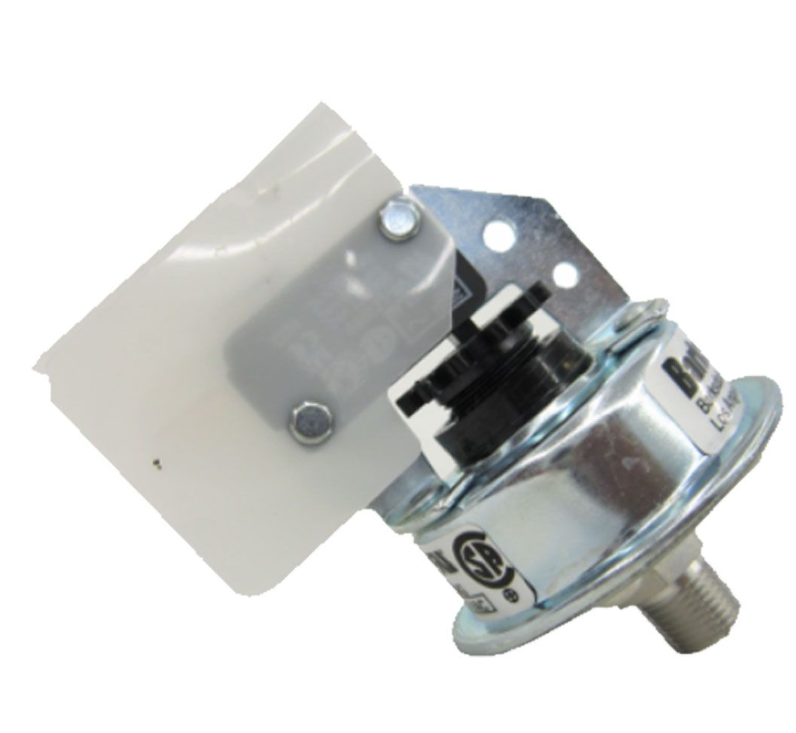

Mistcooling pump Pressure switch

1

MC60520

24

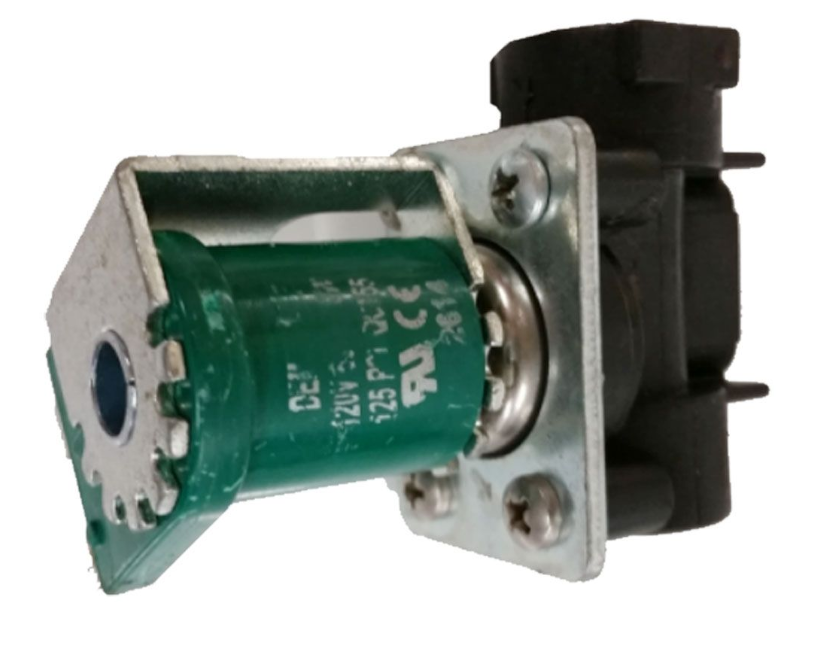

Solenoid valve 3/8" 115V

1

MC60540

25

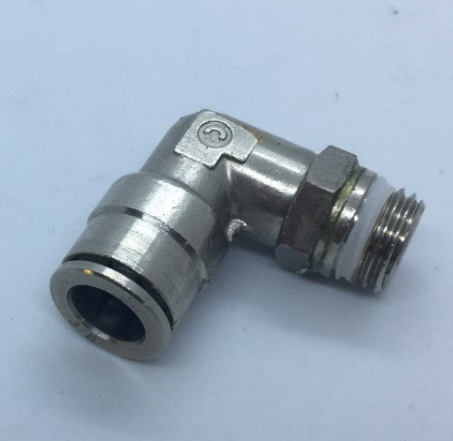

1/4'' Male Thread to 3/8'' Push Lock elbow

1

26

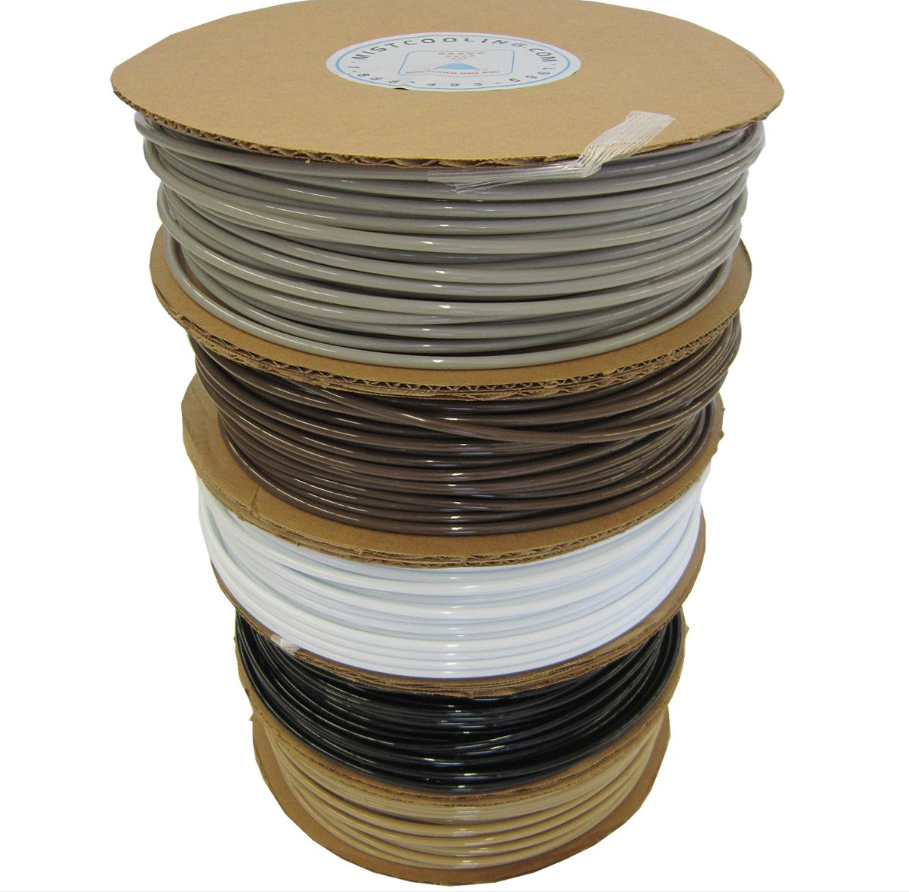

H.P. tubing- 3/8"

2

MC72020

27

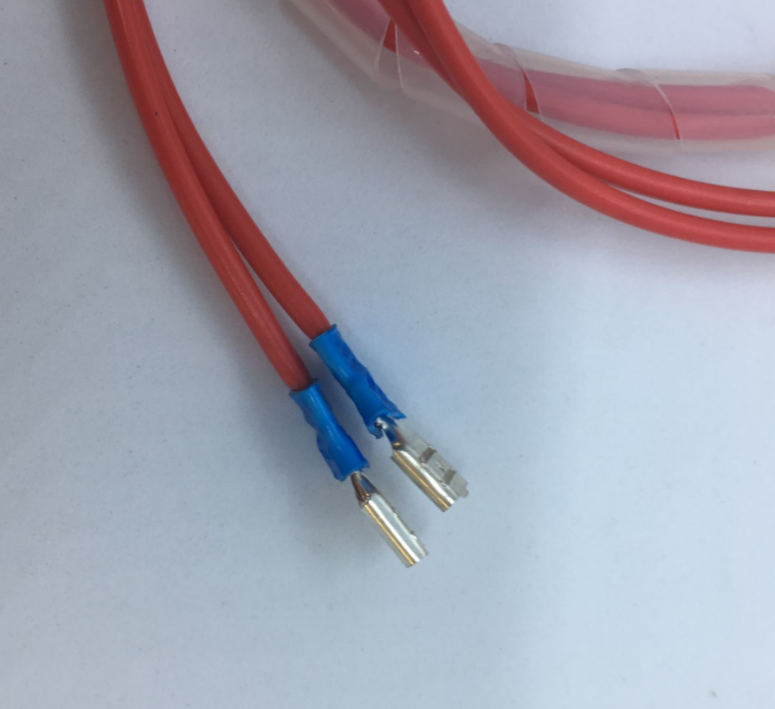

12-gauge red cable (3')

2

28

12-gauge black cable (3')

2

29

3/8" x 1/4" reducer

2

30

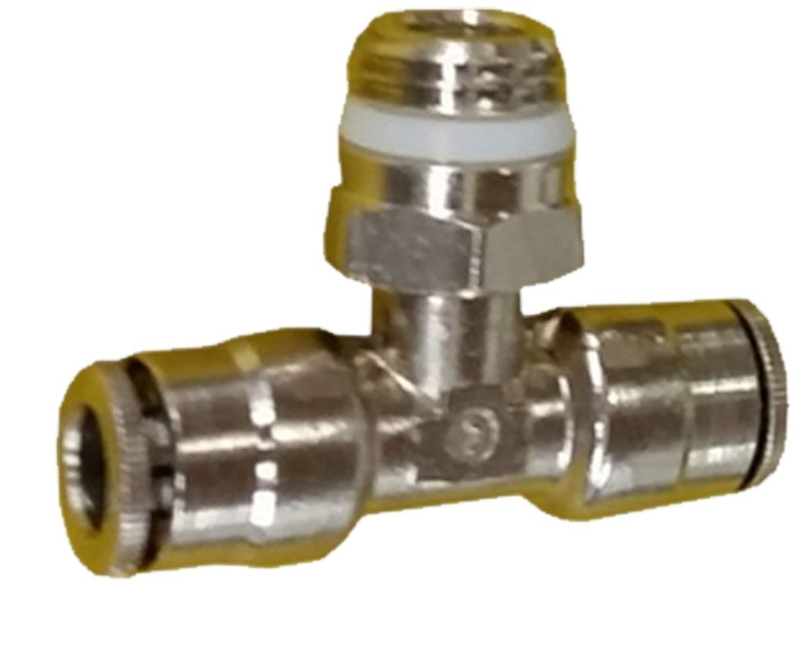

Misting Pump Mist tee- Push lock swivel thread 3/8"

1

MC60300

31

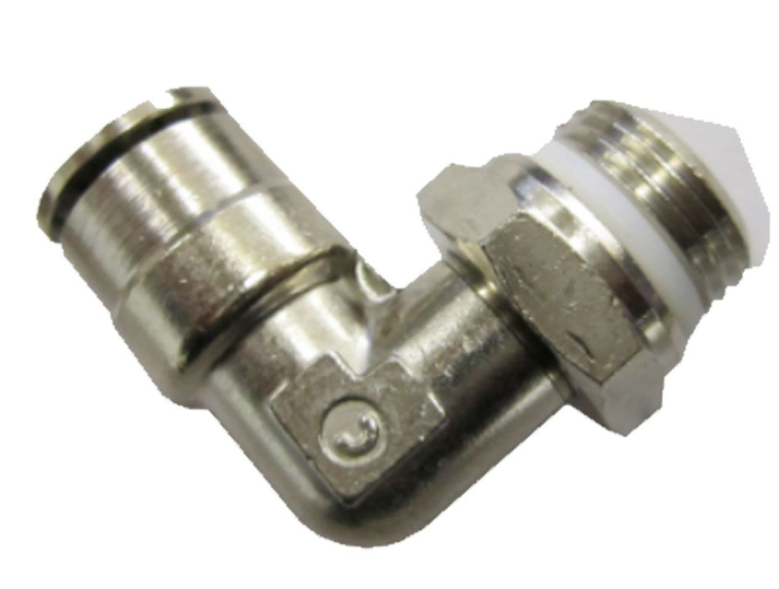

Push Lock Elbow 3/8 Inch-3/8" thread

1

MC60100

32

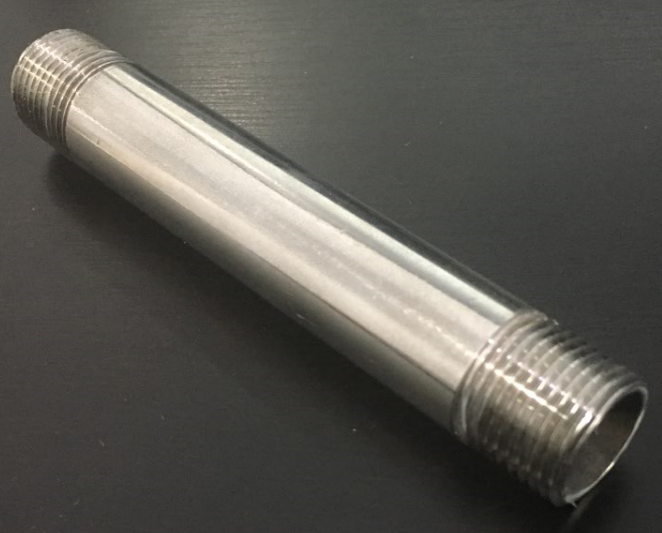

3/8 nipple-3"

1

33

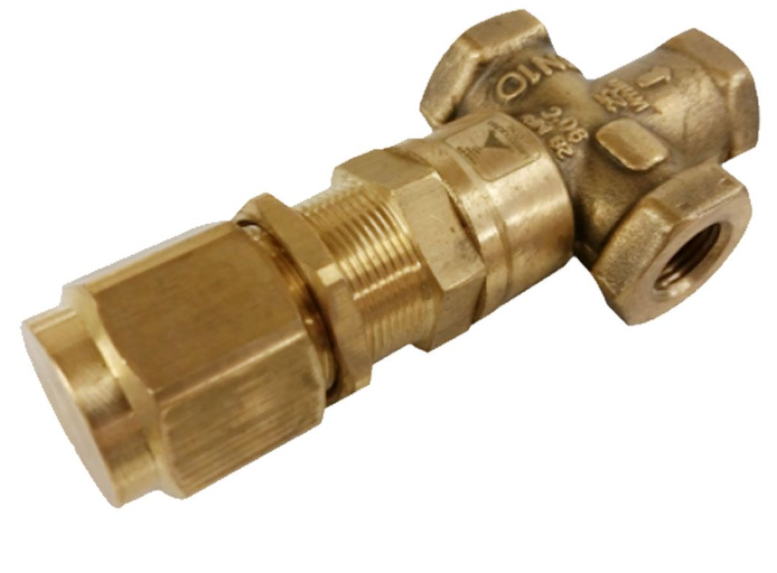

Brass PRV

1

MC60600

34

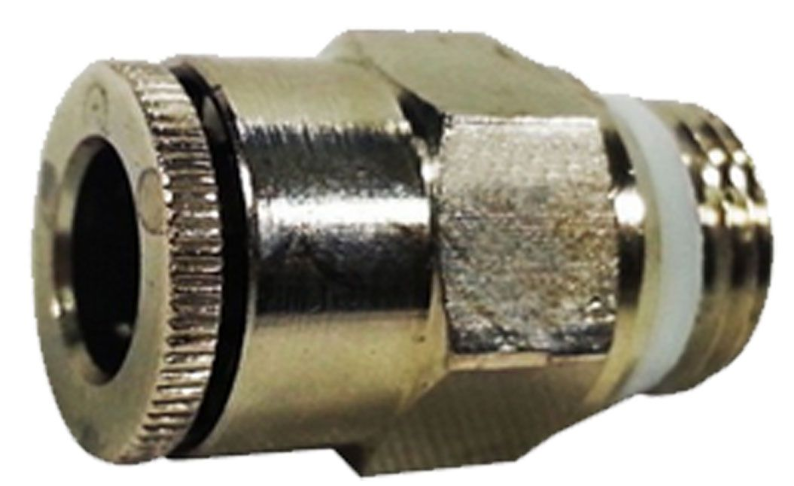

Adapter-1/4'' Male Thread to 1/4'' Push Lock Tube

1

MC52440

35

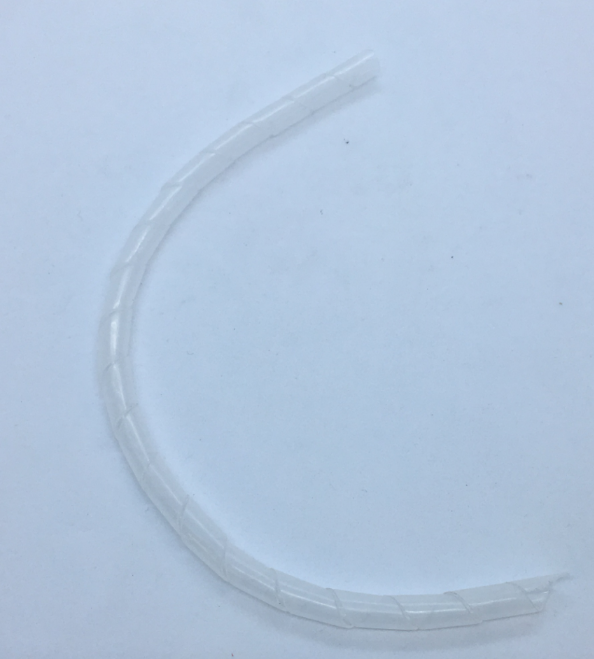

cable wraps

1

36

1/2 gpm pump head

1

37

1/2 H.P. motor

1
