250 PSI Gravity Conversion kit

Pump Conversion for Gravity Feed- 250 psi

• Standard 250psi pump has built-in filter and solenoid.
• To convert 250 psi pump for gravity feed operation, open the pump enclosure from mentioning “OPEN THIS SIDE FOR MAINTAINENCE”.

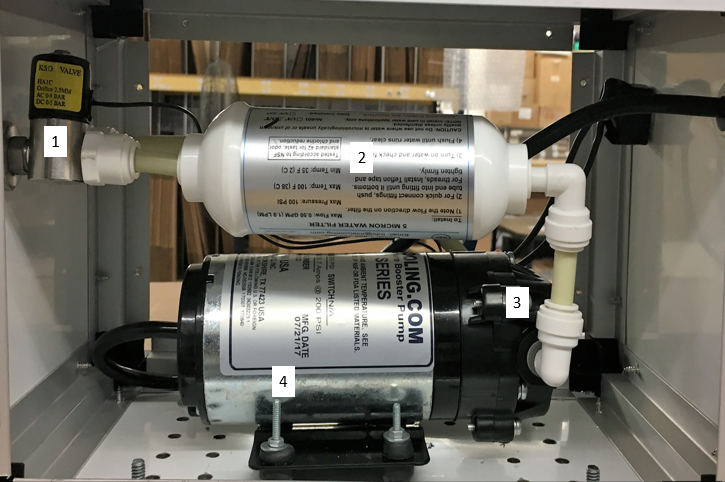

• Remove in-line filter (2), and solenoid (1); filter and solenoid has push-lock fittings, refer to push-lock fittings guide, if required.

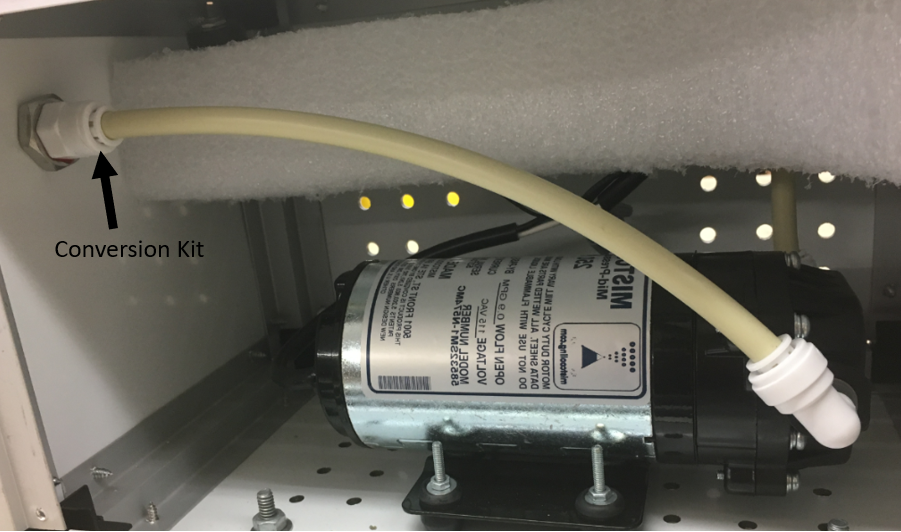

• Install conversion kit in place of the filter and solenoid. Kit includes ¼” male thread- 3/8” push lock fitting with tubing.
• Screw it to inlet bulk-head and snap the other end to pump inlet push-lock, to connect end.
• Place the filter before the tank to make sure that tank has clean water.
