Only fan on the market with the hinged open front guard. This patented design helps cut cleaning and maintenance time. Dirt and dust are removed in minutes to get you right back to energy-efficient, high-output performance.
Features
• Available in 12”, 20”, 24” and 36”
• Patented open front guard for easy maintenance
(U.S. Patent No. 5,348,447)
• Fan ships fully assembled

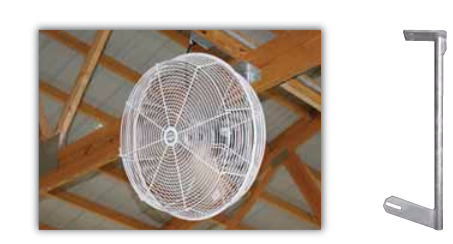

• Includes hot dip galvanized ceiling mount bracket
• Industry leading air velocity
• Quiet operation
• Direct drive motors with no belts or bearings to maintain
• Guards are white powder coated for easy cleaning and
corrosion resistance
• Single Speed Operation
• Totally enclosed, maintenance-free, direct drive high-efficiency
motors have completely sealed ball bearings, UL and CUL
recognized, and are covered by a 1Year Warranty
• Single phase models have automatic overload protection
• Can be used with our misting/fogging product line
Specs:
Size: 12’’
HP: 1/10
Volts: 230
Amps 0.5
Hz: 60
Ph: 1
Speed: 1
FPM: 525
Thrust (lbf): 0.76
Thrust Eff. Ratio: 7.0
Kw: 0.109
RPM: 1705
Thrust CFM: 970
Thrust CFM / Watt: 8.9
Prop: 3 – Alm
Test# C08032
All units are direct drive with white guards and include the corresponding hot dip galvanized standard flag mount bracket
220vac fans do not come with a cord.
