1500 PSI Components 0.15-0.3

Pump Model:  1500 psi pump (0.15/ 0.3 gpm)

Sr.

Part

Qty.

SKU


1

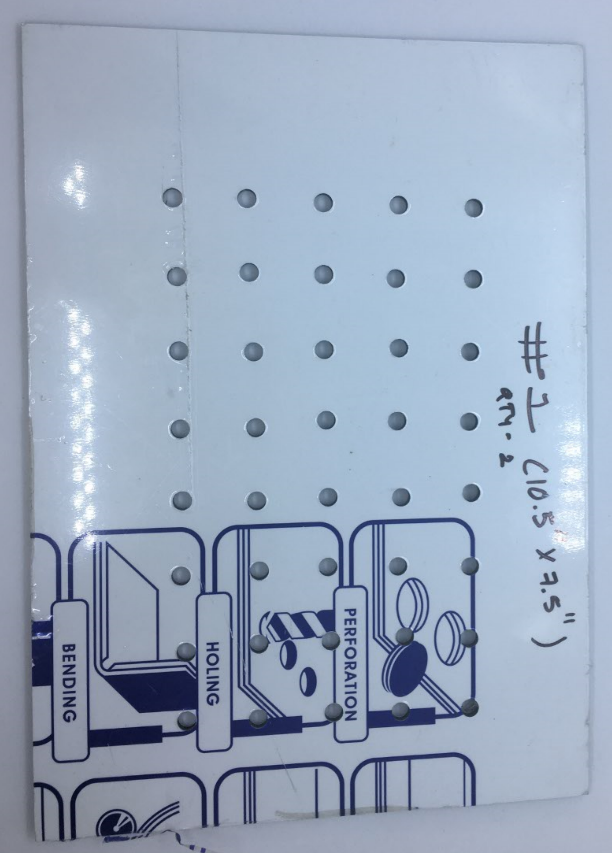

10.5 x 7.5" panel

2

2

12 x 7.5" panel (no holes)

2

3

12 x 10.5" panel (top- no holes)

1

4

12 x 10.5" panel (Bottom-     with holes)

1

‘’

5

Casing screws (1/2")

52

6

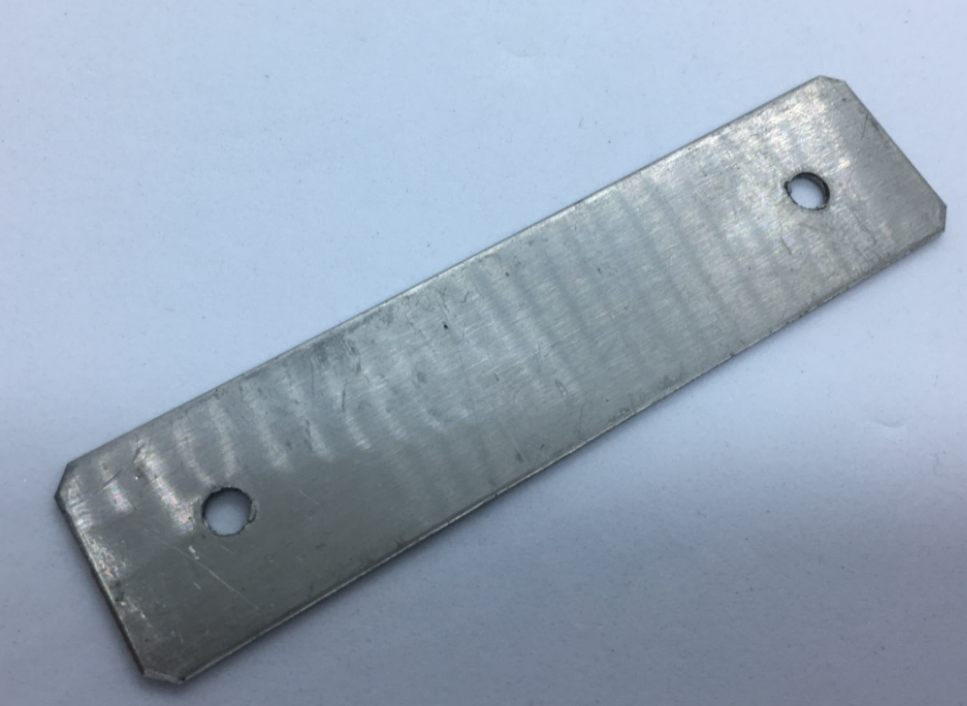

Filter bracket

1

7

Washers (at filter)

4

8

Brass bulk head

2

9

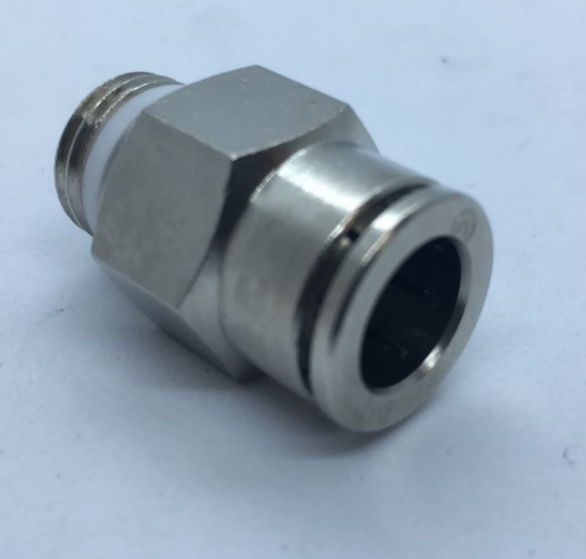

Adapter-1/4'' Male Thread x 3/4'' Push Lock

1

MC52444

10

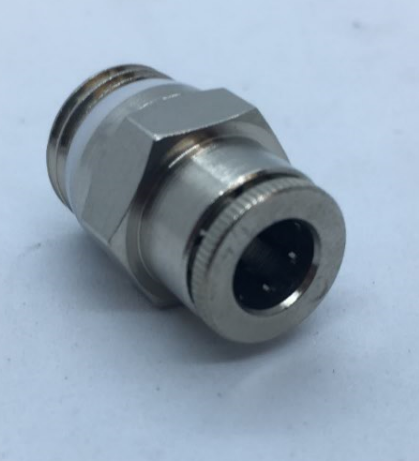

Adapter-1/4'' Male Thread x 1/4'' Push Lock

1

MC52440

11

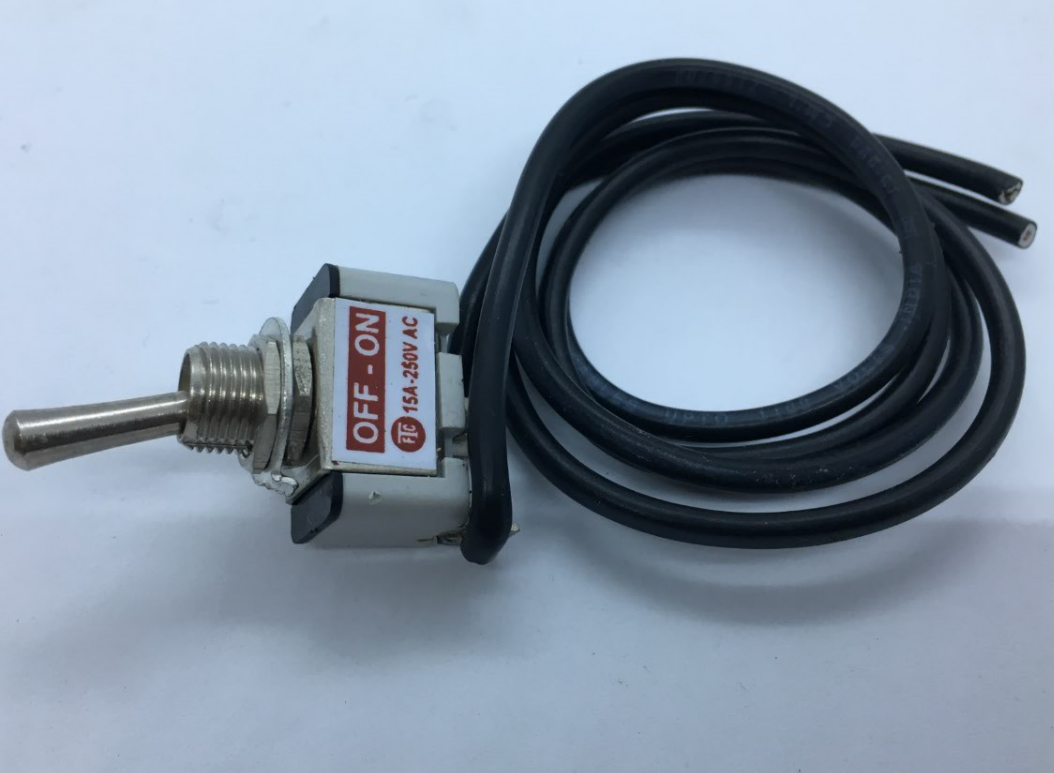

Toggle switch- with wire

1

12

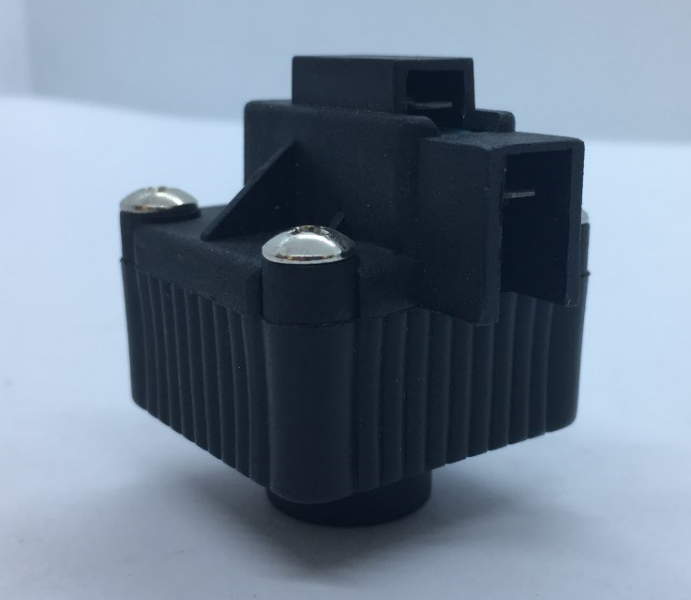

No-water cut off switch (pressure switch)

1

MC60580

13

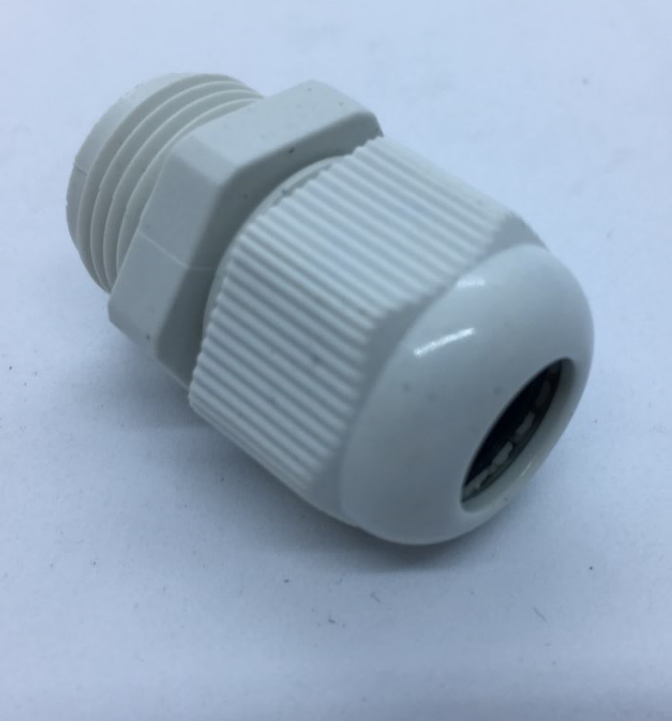

Plastic bulkhead

1

14

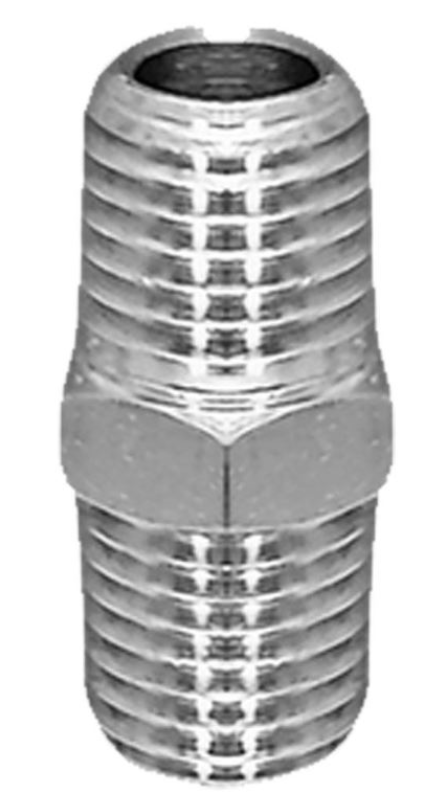

1/4 x 1/4" hex nipple

3

MC60020

15

1/8" x 1/4" Hex nipple

1

MC59060

16

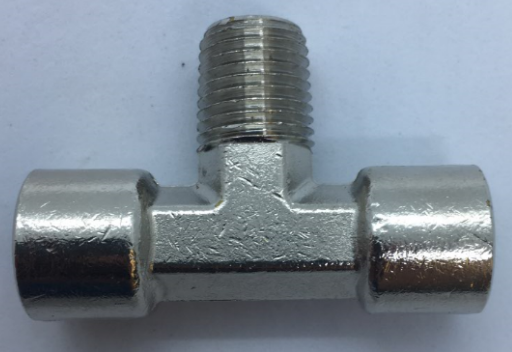

1/4" Female Male Female Misting Tee

1

MC53180

17

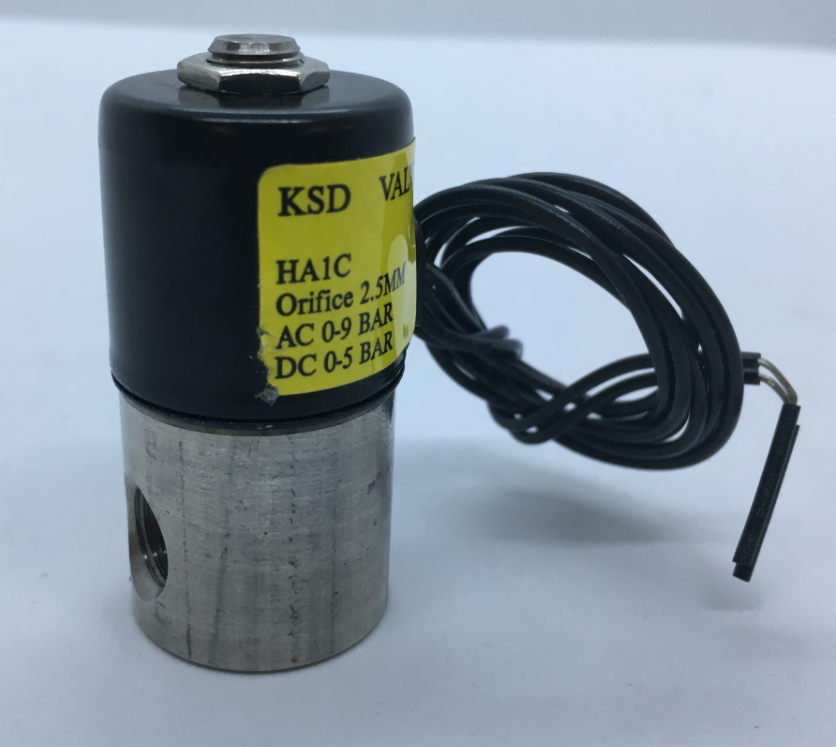

Misting Pump Solenoid Valve- 1/4 Inch Plastic

1

MC60460

18

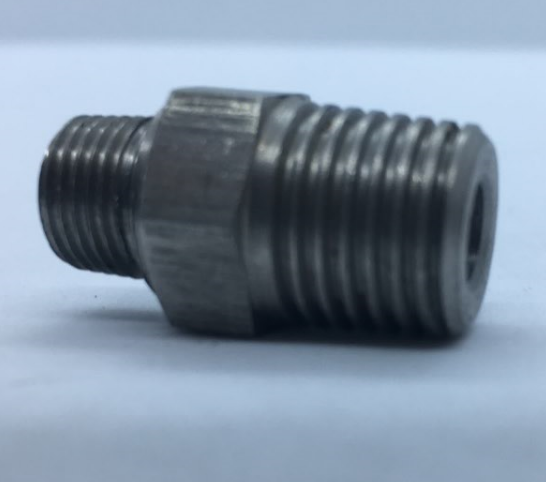

1/8" male x 1/4" female hex nipple

1

19

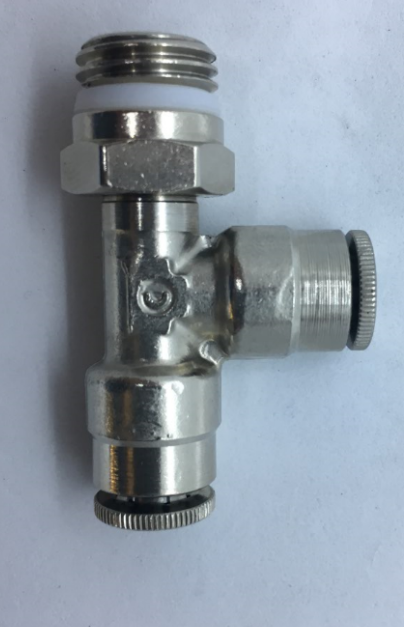

1/4" male tee swivel push lock

1

20

1/4" H.P. tubing- black

2

21

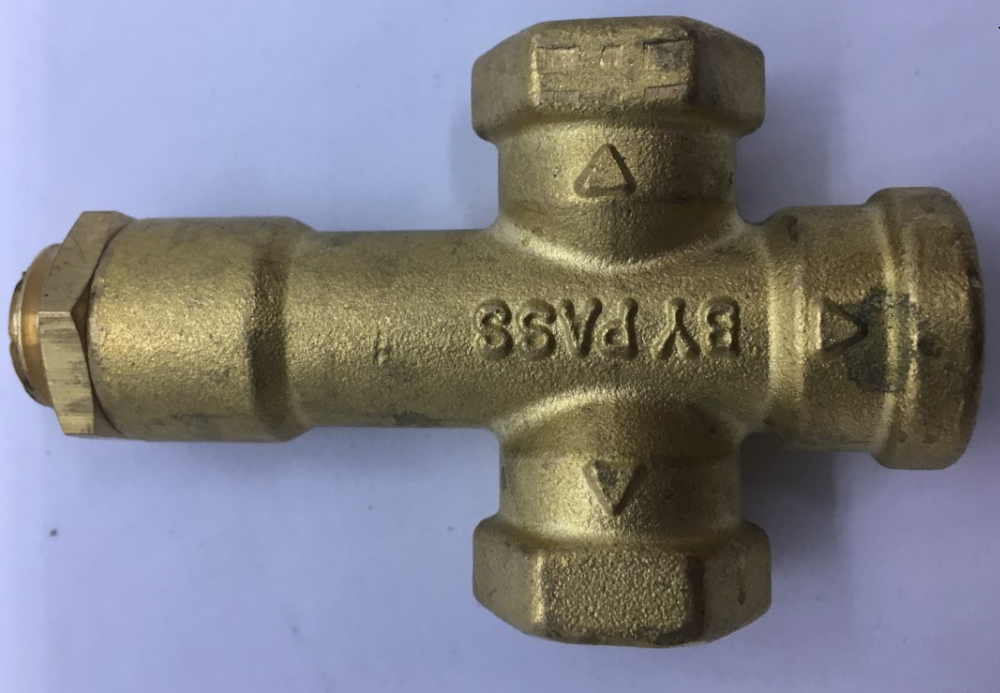

Brass PRV

1

22

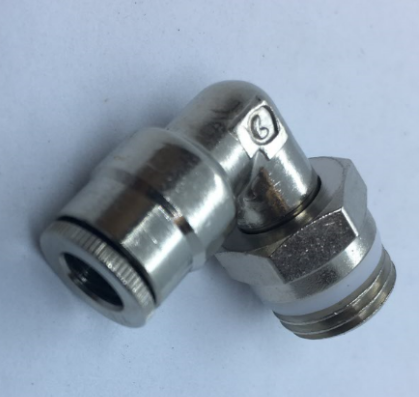

Pump Fitting- Elbow Swivel Male thread to Push Lock

1

MC52400

23

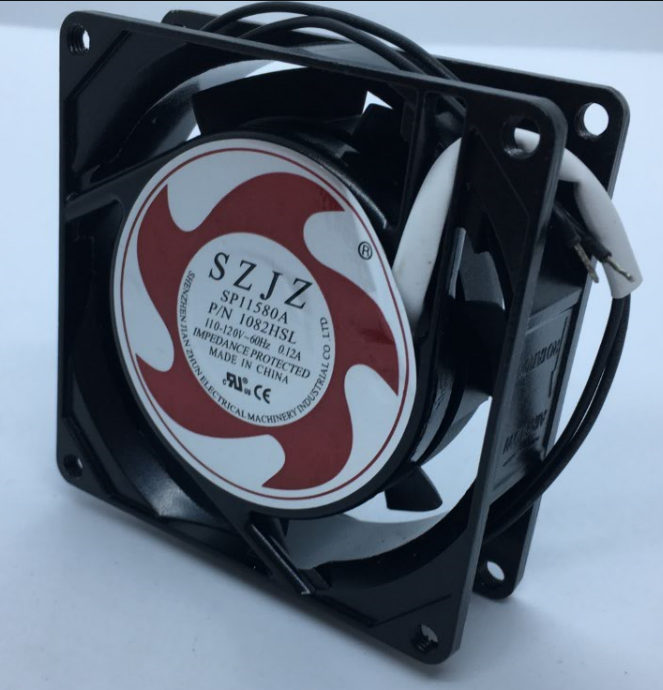

Small fan

1

24

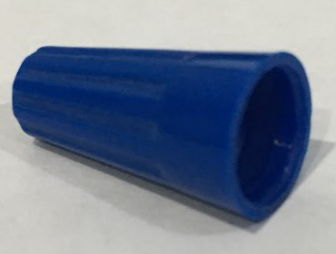

Blue wire caps

3

25

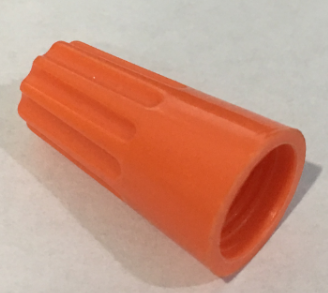

Orange wire caps

2

26

Big rubber feet

4

27

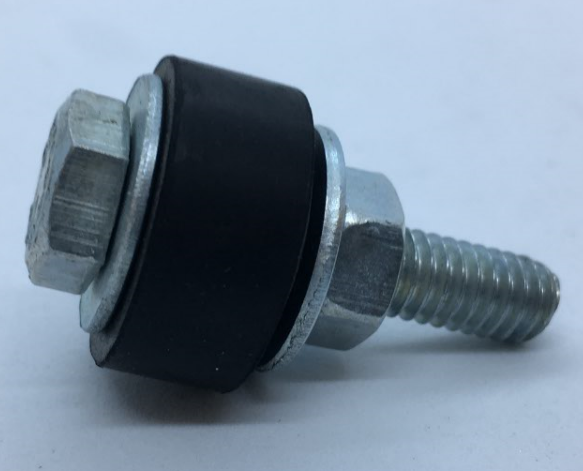

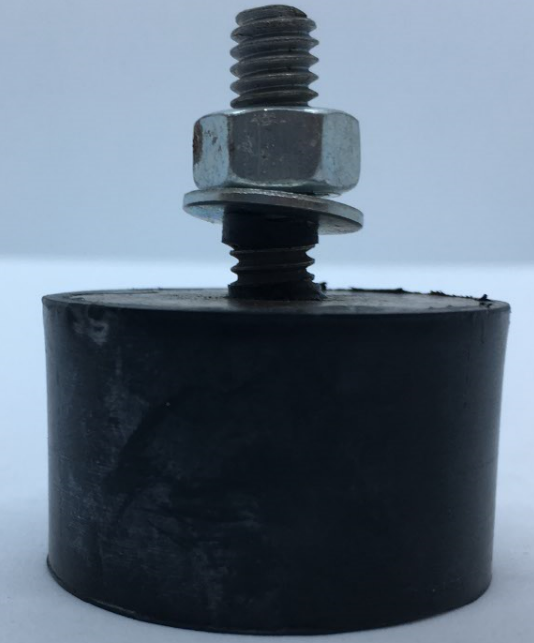

Pump mounts (nut, bolt and washer)

4

28

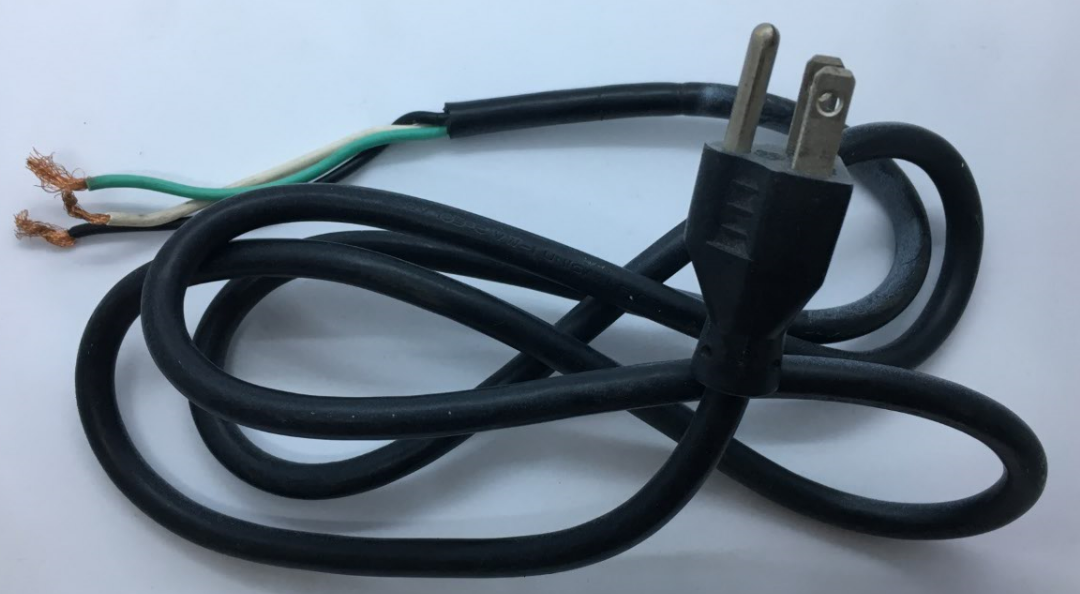

6' power cord

1

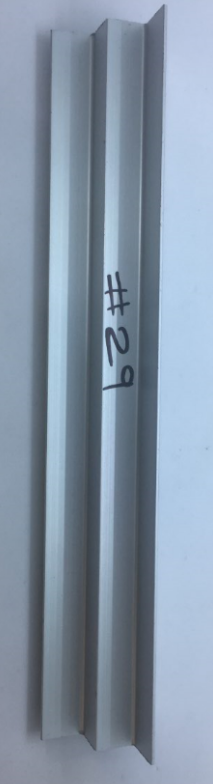

29

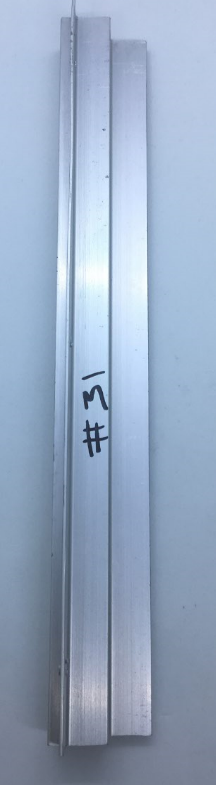

9.5" al. channel

4

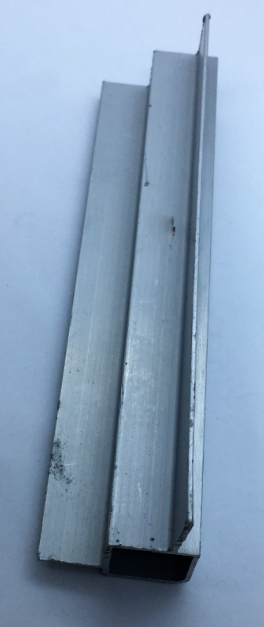

30

6.3" al. channel

4

31

10.7" al. channel

4

32

pump and motor

1

33

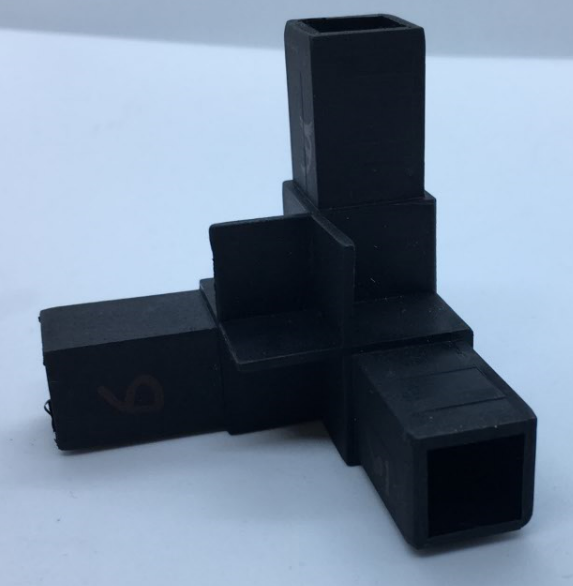

plastic connectors for channels

8

34

Transformer

1
