Solenoid Upgrade Instructions
- Solenoid valve shuts of the water to the pump when there is no power supplied to the pump. Below are the steps to upgrade the pump with solenoid.
- Standard 1000psi pump does not have built-in solenoid.
- To upgrade the pump with solenoid, open the pump enclosure.
- Install the upgrade kit as showed in the picture. Cut the tubing or adjust if it requires. (solenoid upgrade kit; https://www.mistcooling.com/mistcooling-system-upgrade.html)

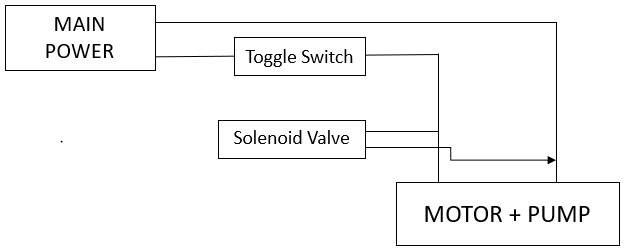

- Connect the one solenoid wire to toggle switch and pump; connect the other wire with Main (white) and pump (white) wire. Please see wiring diagram below.
